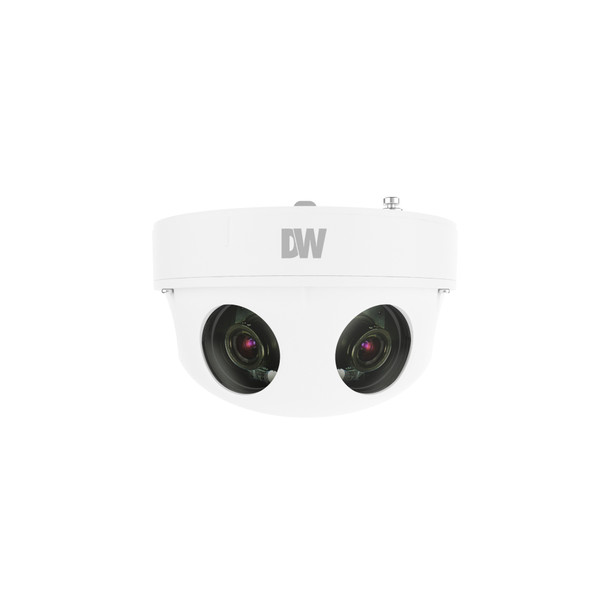

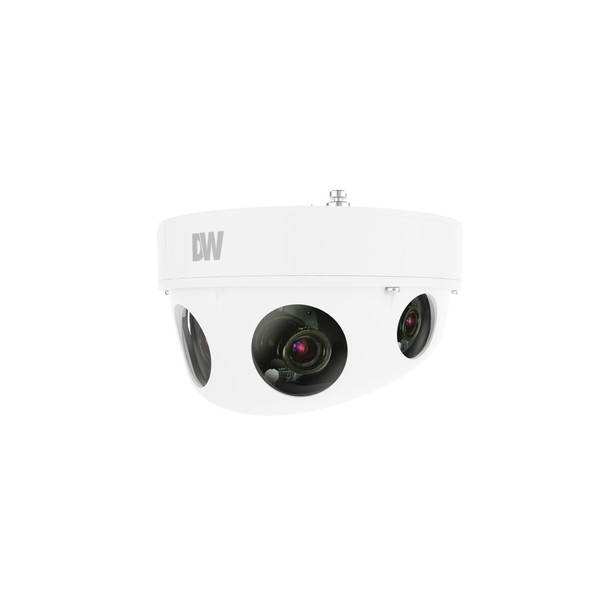

Digital Watchdog DWC-PZ21M69TW 21MP Outdoor Multi-sensor IP Security Camera with 4x8.0mm Fixed Lenses
The MEGApix Pano 21MP multi-sensor IP vandal camera produces 180° views at real-time 30fps. The camera supports advanced features such as H.264 codec and Smart DNR in an aluminum vandal housing with zero distortion antireflective glass. The 21MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
This camera requires a wall mount, ceiling mount or flush mount, sold separately, to complete the camera’s installation.
Key Features:
- 4x 6.4MP 1/1.8" image sensor at real-time 30fps

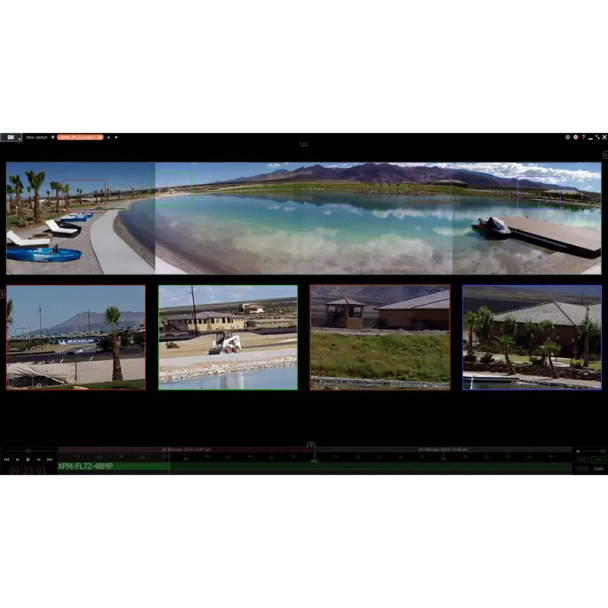

- 21MP 180° panoramic view IP camera
- 4x 8.0mm fixed lens
- Fast frame rates: real-time 30fps at 21MP
- Zero distortion anti-reflective glass
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Easy image alignment and stitching
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Alarm sensor input
- Relay output
- Web server built-in
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- PoE+ high power and DC12V
- IP66 certified weather and tamper-resistant
- 5 years warranty
Replacement of:
DWC-PZ21M69T
Downloads
User Manual
Digital-Watchdog-DWC-PZ21M69T-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
|
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.264
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
192 x 108 mm (7.55 x 4.25 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
23.2 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3072 x 1728
|
|
Minimum Illumination (Color):
|
0.16 Lux
|
|
Mounting:
|
Corner Mount
Ceiling Mount
Wall Mount
Pole Mount
|
|
Network Interface:
|
1x RJ-45 1000 Mbps Port
|
|
Noise Reduction:
|
3D DNR
Smart DNR
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Product Series:
|
Digital Watchdog MEGApix PANO Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
21MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer
Chrome
Firefox
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
