Description

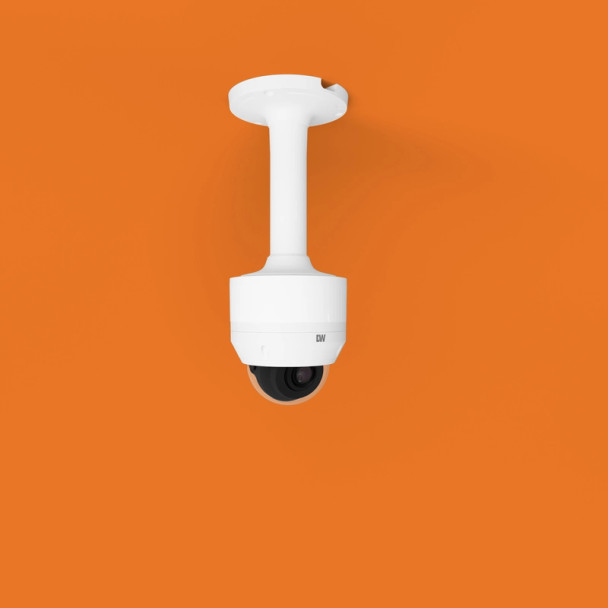

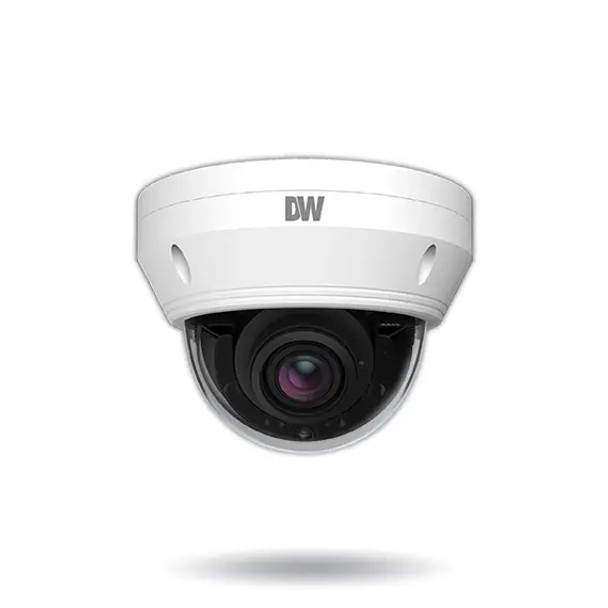

Digital Watchdog DWC-VSDG04MI 4MP WDR Outdoor Dome IP Camera with Smart IR, 2.8~12mm Varifocal Lens, NDAA Compliant, White
These MEGApix® IP cameras are NDAA compliant and deliver crystalclear images at 4MP resolution and real-time 30fps. The vandal dome camera features a 2.8~12mm vari-focal lens with motorized zoom in an IP67-rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Key Features:
- 4MP 1/3” image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Quick Start Guide
Digital-Watchdo-DWC-VSDG04MI-Quick-Start-Guide-A1
User Manual
Digital-Watchdo-DWC-VSDG04MI-User-Manual-A1
Videos
View AllClose
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Line Crossing
Motion Detection
|
|
Aperture:
|
F1.4
|
|
Audio Compression:
|
G.711a
G.711u
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
141 x 100 mm (5.55 x 3.93 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
31
92
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Automatic White Balance (AWB)
Backlight Compensation (BLC)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Metal
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1440
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.005 Lux
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
Smart IR
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Digital Watchdog MEGApix Series
|
|
Protection Code:
|
IK10
IP67
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
50 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/2-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
