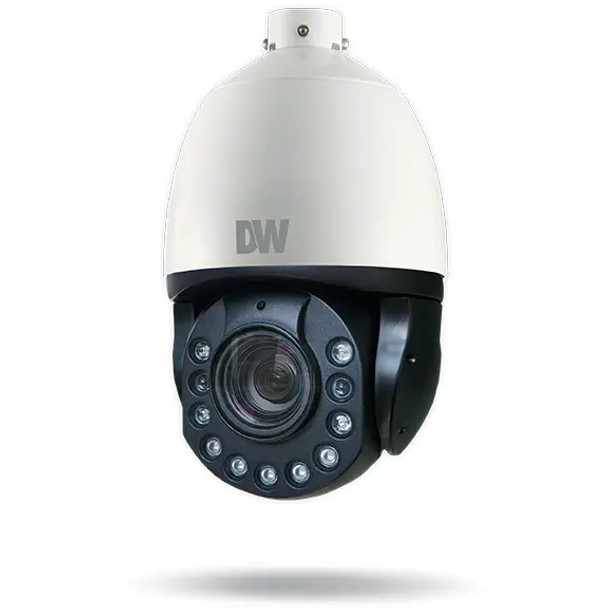

Digital Watchdog DWC-XPZA08MI 4K PTZ IP Security Camera with 40x Optical Zoom
Digital Watchdog DWC-XPZA08MI PTZ IP camera provides 4K resolution at real-time 30fps with 40x optical zoom. The camera offers delicate and precise control and movement, with endless 0~360° panning, 500 presets, multiple patterns and swing configurations, auto parking and auto-tracking, all controllable from the camera’s web interface or directly via RS485 connection. DWC-XPZA08MI features a 1148ft range Smart IR™, Star-Light Plus™ color in near-total darkness technology and true WDR for quality video in any lighting conditions. The weatherresistant IP66-rated, IK-10 impact-resistant, high-speed PTZ camera gives users clear zoom, instant movement and intelligence. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Key Features:
- 4K 1/1.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- High-speed pan, tilt, zoom camera
- 6.5-260mm vari-focal lens with motorized zoom and auto-focus
- 40x optical zoom, 16x digital zoom
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 1148’ Smart IR™ with intelligent camera sync and no IR reflection
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Pan 0~360° endless, 250° per second pan speed
- 500 preset positions
- 4 patterns and 8 swings
- Auto parking and auto-tracking
- Motion detection
- Two-way audio
- Alarm sensor input and relay output
- Web server built-in
- PoE++ class 7
- ONVIF conformant, profile G, S, T and M
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 2 year warranty
Downloads
Additional Information
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
Auto
|
|
Digital Zoom:
|
16
|
|
Dimensions:
|
227 x 384.8 mm (8.9 x 15.1 in)
|
|
Durability:
|
Vandal Resistant
Dust Resistant
Water Resistant
|
|
Lens Size:
|
6.5-260mm
|
|
Lens Type:
|
Varifocal Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
70 Watts
|
|
Night Vision Range (ft):
|
1148
|
|
Night Vision Type:
|
Smart IR
|
|
Noise Reduction:
|
3D DNR
|
|
Optical Zoom:
|
40x Optical Zoom
|
|
Power Supply:
|
Hi-PoE (IEEE802.3bt)
|
|
Product Series:
|
Digital Watchdog MEGApix PTZ Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
8MP (4K)
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
2-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
