Description

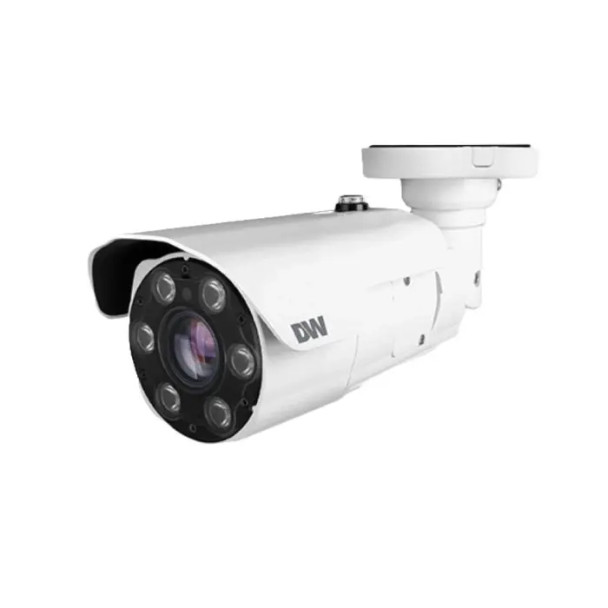

Digital Watchdog DWC-XSBA05LiP 5MP Outdoor Bullet IP Security Camera with 6-50mm Lens, 8x Optical Zoom and Built-In IR
The Digital Watchdog DWC-XSBA05LiP is an advanced MEGApix AI ALPR IP camera utilizing deep learning AI engine to detect and extract vehicle license plate characters as well as the make, model, and color of vehicles at speeds up to 75mph. This camera converts pixels to usable digital data for comprehensive vehicle identification and tracking.
Featuring a 5MP 1/2.8-inch CMOS sensor operating at real-time 30fps with Star-Light Plus color in near-total darkness technology, this camera delivers exceptional image quality for license plate recognition in any lighting condition. The 6-50mm vari-focal P-iris lens with 8x optical zoom and motorized autofocus provides complete remote lens control for precise focus at varying capture distances.
The AI-powered Automatic License Plate Recognition (ALPR) system captures and reads vehicle license plates from 23-165 feet during day and 23-131 feet at night. Create up to 40 separate detection zones with easy setup requiring no manual analytics calibration. The 130-foot Smart IR ensures clear capture in complete darkness.
Built with an IP67-rated and IK10 impact-resistant aluminum die-casting bullet housing, this camera withstands harsh outdoor conditions. Cold Start capability at -40°F allows operation in extremely cold environments. NDAA and TAA compliant for federal and government projects.
Key Features:
- 5MP 1/2.8-inch CMOS sensor at 30fps; delivers high-resolution footage for license plate identification
- AI Deep Learning ALPR; captures license plates at speeds up to 75mph with vehicle make, model, and color detection
- ALPR range 23-165ft day / 23-131ft night; covers wide capture distances
- 6-50mm motorized P-iris lens with 8x optical zoom; enables remote focus and zoom adjustment
- 130ft Smart IR illumination; ensures clear night vision for license plate capture
- Up to 40 detection zones; allows flexible monitoring configurations
- True WDR 120dB; balances exposure in challenging lighting conditions
- IP67 weatherproof and IK10 vandal-resistant; built for demanding outdoor environments
- Cold Start at -40°F; operates in extreme cold environments
- NDAA/TAA compliant; approved for government projects
Downloads
Additional Information
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Camera Style:
|
Bullet
|
|
Captures license plates up to (mph):
|
75
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
Auto
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
40.8
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
6~50mm
|
|
Lens Type:
|
Varifocal Motorized Lens
|
|
Night Vision Range (ft):
|
130
|
|
Noise Reduction:
|
3D DNR
|
|
Optical Zoom:
|
8x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
5MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
