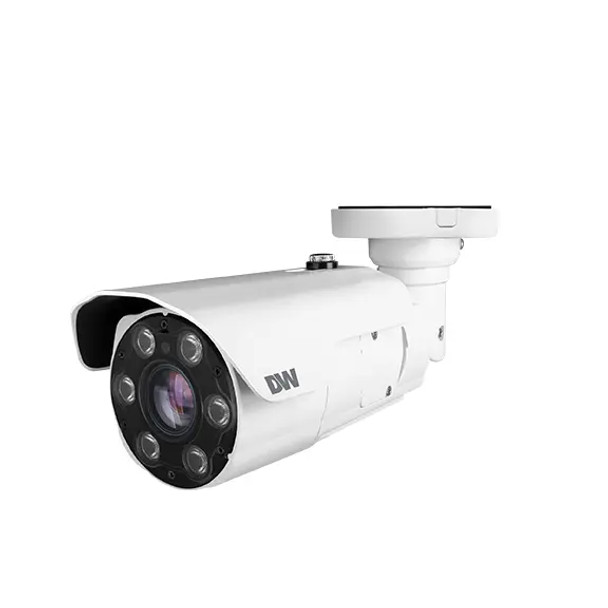

Honeywell DWC-XSBA05MiM 5MP Outdoor Bullet IP Security Camera with 6-50mm Lens, 8x Optical Zoom, License Plate Recognition and Built-In IR

Part Number: DWC-XSBA05MiM
Write a Review
  • Digital Watchdog DWC-XSBA05MIM - 1
  • Digital Watchdog DWC-XSBA05MIM - 5 Years Warranty
$4,038.00
$2,981.95
— You save $1,056.05

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Lens Size : 6~50mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP67 IK10
  • Environmental : Outdoor
  • Aperture : F1.6

Description

Honeywell DWC-XSBA05MiM 5MP Outdoor Bullet IP Security Camera with 6-50mm Lens, 8x Optical Zoom, License Plate Recognition and Built-In IR

The Honeywell DWC-XSBA05MiM is a 5MP outdoor bullet IP security camera designed for automatic number-plate recognition (ANPR) and vehicle make, model, and color recognition (MMCR). Featuring a 6-50mm motorized vari-focal p-iris lens, it provides 8x optical zoom and a horizontal field of view ranging from 6.9° to 40.8°. The camera delivers 5MP resolution (2592 x 1944) with True Wide Dynamic Range (WDR) of 120 dB; ensuring clear images in both bright and low-light conditions. Built-in IR illumination offers night vision up to 130 feet, making it suitable for 24/7 surveillance of vehicles traveling at speeds up to 75mph. The DWC-XSBA05MiM supports deep learning AI for object detection and tracking, with up to 40 detection zones, reducing false alarms and enhancing recording storage with smart recording logic. Its rugged design includes IP67 weatherproof protection and IK10 impact resistance, ensuring durability against harsh weather and physical impacts.

Key Features:

  • 5MP resolution; delivers high-definition imaging for detailed surveillance.
  • 6-50mm motorized vari-focal p-iris lens; offers 8x optical zoom with adjustable field of view.
  • Built-in IR illumination; provides night vision up to 130 feet for effective low-light performance.
  • True Wide Dynamic Range (WDR) up to 120 dB; enhances image clarity in challenging lighting conditions.
  • AI deep learning analytics; supports vehicle license plate, make, model, and color recognition (ANPR and MMCR).
  • Supports vehicle speeds up to 75mph; captures clear images for fast-moving vehicles.
  • Programmable privacy zones; allows for up to 16 configurable areas for privacy masking.
  • IP67 weatherproof rating; provides durable protection against harsh weather conditions.
  • IK10 impact-resistant housing; offers high durability against vandalism and physical damage.
  • Smart DNR 3D digital noise reduction; improves image quality by reducing noise.
  • MicroSD card support; allows for up to 256GB of local storage.
  • PoE+ (IEEE 802.3at) and DC12V power options; offer flexible installation configurations.
  • NDAA and TAA compliant; meets government security requirements for federal installations.
  • ONVIF compliant; ensures seamless integration with leading video management systems.

Additional Information

Aperture:
F1.6
Camera Style:
Bullet
Compliance:
NDAA Compliant TAA (Trade Agreements Act)
Compression:
H.264 H.265 MJPEG
Day/Night:
Dimensions:
310 mm × 97 mm (12.2” × 3.81”)
Durability:
Vandal Resistant Weather Resistant
Environmental:
Outdoor
Iris:
P-iris
Lens Size:
6~50mm
Operating Humidity:
10% to 90% (non-condensing)
Operating Temperature:
-40 °C to 50 °C (-40 °F to 122 °F)
Power Supply:
12 VDC PoE+ (IEEE802.3at)
Protection Code:
IP67 IK10
Resolution:
5MP (3K)
SD Card Support:
SD Card Supported
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB
