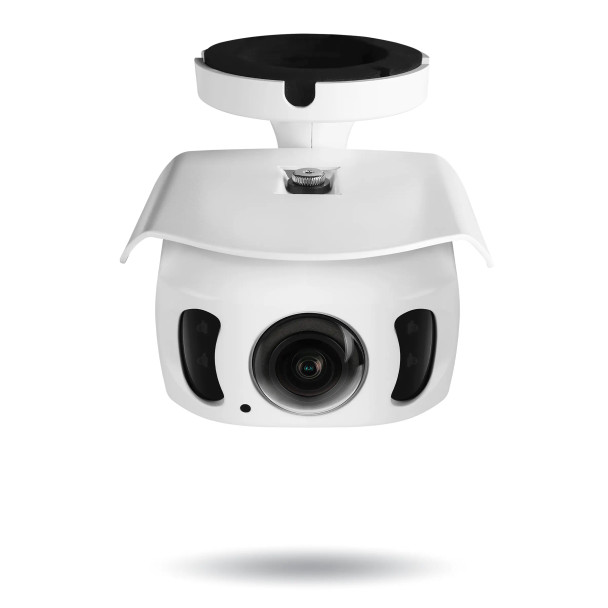

Digital Watchdog DWC-XSBC08BiC1 8MP (4K) Bullet IP Security Camera with Ultra-wide Fixed Lens, IR and an AI Engine
Digital Watchdog DWC-XSBC08BiC1 NDAA/TAA-compliant MEGApix® Ai CaaS™ all-in-one IP camera provides 4K resolution at real-time 30fps with edge Ai and DW Spectrum® IPVMS server installed and licensed on the camera. No additional server hardware is required. The camera’s ultra-wide view lens offers edge-to-edge image clarity, ideal for wide-area situational awareness.
Key Features:
- 4K sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- AI Deep Learning object detection
- Create up to 40 separate detection zones.
- Easy setup with no analytics calibration
- Seamless integration and control with DW Spectrum® IPVMS
- Reduce false alarms with multiple detection zones and logic rules.
- Increase your recording storage with smart recording and no false alarms.
- Built-in 1TB storage options for up to 90 days of retained video*
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation.
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- 2.3mm ultra-wide view lens for edge-to-edge image clarity without pixel loss
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- Cold Start -40°F (-40°C) (DC power), allowing the camera to power up in extremely cold environments
- 100’ Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Two-way audio for direct communication between the monitoring station and the camera’s location
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA/TAA compliant for federal and government projects
- IP67- and IK9-rated camera housing built to last
- 5 year warranty
Downloads
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F2.8
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
|
|
Camera Style:
|
Bullet
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
|
|
Dimensions:
|
5.03” x 8.75” x 3.8” (127.9 x 222.5 x 96.7mm)
|
|
Durability:
|
Impact Resistant
Water Resistant
|
|
Lens Size:
|
2.3mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
9.12 Watts
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Smart IR
|
|
Noise Reduction:
|
3D DNR
Smart DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK09
IP67
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>50 dB
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
Star-Light Plus
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
