Description

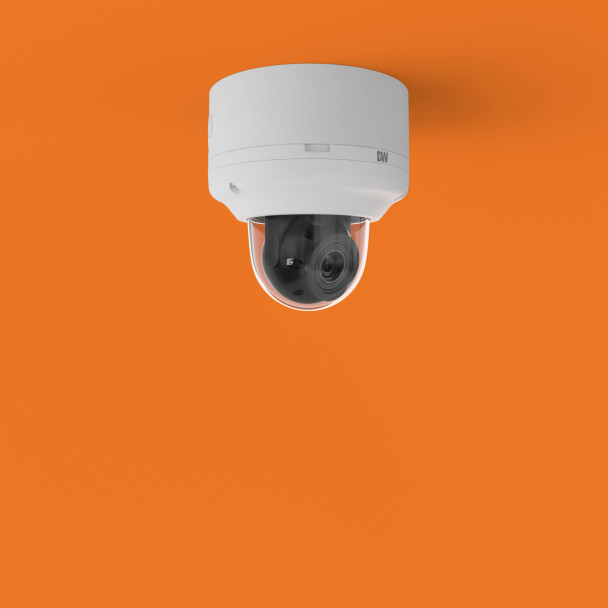

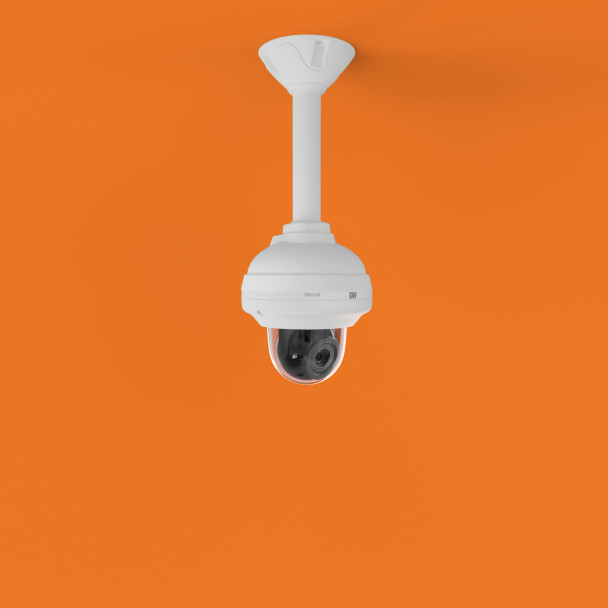

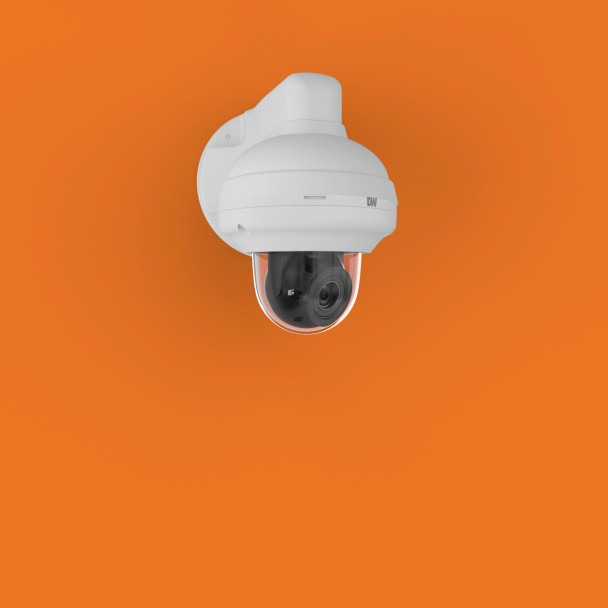

Digital Watchdog DWC-XSDE08MiC1 8MP (4K) Dome IP Security Camera with 2.7-13.5mm Varifocal Lens, IR and an AI engine
Digital Watchdog DWC-XSDE08MiC1 serverless NDAA/TAA-compliant MEGApix® Ai CaaS™ all-in-one IP camera provides 4K resolution at real-time 30fps with edge Ai and DW Spectrum® IPVMS server installed and licensed on the camera. No additional server hardware is required.
Key Features:
- 4K sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- AI Deep Learning object detection
- Create up to 40 separate detection zones.
- Easy setup with no analytics calibration
- Seamless integration and control with DW Spectrum® IPVMS
- Reduce false alarms with multiple detection zones and logic rules.
- Increase your recording storage with smart recording and no false alarms.
- Built-in 1TB storage options for up to 90 days of retained video*
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation.
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100’ Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
- CleanView™ hydrophobic dome coating repels water, dust and grease.
- Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera’s field of view.
- Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera’s location
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA/TAA compliant for federal and government projects
- IP67- and IK10-rated camera housing built to last
- 5 year warranty
Downloads
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F1.4
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Dome
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
|
|
Dimensions:
|
4.92” x 3.62” (125 x 92mm)
|
|
Durability:
|
Impact Resistant
Water Resistant
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Varifocal Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
12.5 Watts
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Smart IR
|
|
Noise Reduction:
|
3D DNR
Smart DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK10
IP67
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>50 dB
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
Star-Light Plus
|
|
Shutter Speed:
|
1/15-1/32000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
