Description

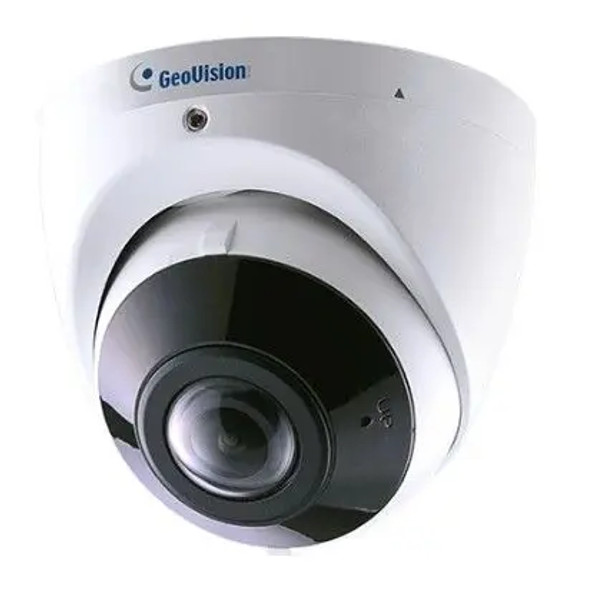

Geovision GV-EBDP8800 8MP Outdoor Eyeball IP Security Camera with 1.68mm Lens and Built-In IR - 84-EBDP880-0010
The Geovision GV-EBDP8800 is an 8MP outdoor eyeball-style IP security camera engineered to deliver 180° panoramic video coverage with AI-powered event detection. Featuring a 1.68mm fixed lens, it offers a complete horizontal field of view, making it ideal for monitoring open areas such as parking lots, building fronts, or wide corridors with a single camera. With WDR Pro and a minimum illumination of 0.01 lux, the camera provides clear images in both high-contrast and low-light conditions. Built-in IR LEDs offer up to 20 meters of night vision. AI-powered analytics support human and vehicle classification for advanced perimeter protection. The camera is housed in an IP67- and IK10-rated casing and includes a built-in microphone and edge recording capabilities.
Key Features:
- 8MP resolution (3840 × 2160); provides UHD video at up to 30fps
- 1.68mm fixed lens; delivers a full 180° horizontal panoramic field of view
- Built-in IR LEDs; supports up to 20 meters of night vision
- AI analytics; supports human and vehicle classification including intrusion, line crossing, and area monitoring
- WDR Pro (120 dB); ensures image clarity in high-contrast lighting environments
- Minimum illumination of 0.01 lux (color); 0 lux with IR on
- Triple stream encoding; supports H.265, H.264, and MJPEG
- Built-in microphone; enables one-way audio monitoring
- Motion detection, tampering alarm, and audio detection support
- microSD card slot; supports SD/SDHC/SDXC/UHS-I cards up to 256GB
- IP67 weatherproof and IK10 vandal-resistant metal housing
- Power input via 12V DC or PoE (IEEE 802.3af); supports flexible installation
- Operating temperature range from -30°C to 60°C; designed for outdoor performance
- ONVIF Profiles G, S, and T compliant; integrates with major VMS platforms and NVRs
Downloads
Additional Information
Aperture:
|
F2.0
|
Camera Style:
|
Eyeball
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
Ø111 mm × 93 mm (Ø4.4" × 3.7")
|
Iris:
|
Fixed Iris
|
Lens Size:
|
1.68mm
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
IK10
|
Resolution:
|
8MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.7"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
