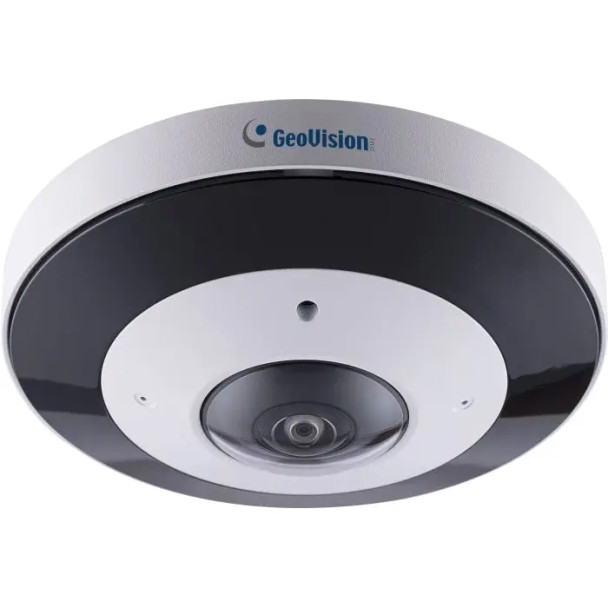

Geovision GV-GFER6900+256G 6MP Outdoor Fisheye IP Security Camera with 1.65mm Lens and Built-In IR - 84-GFER690-256G
The Geovision GV-GFER6900+256G is a 6MP outdoor fisheye IP security camera offering 180° and 360° panoramic views with integrated deep learning AI and edge recording. Its 1.65mm fixed lens captures high-resolution 2160 × 2160 video at 30fps, ideal for wide-area coverage in open environments. Designed for both wall and ceiling mounting, this camera supports IR illumination up to 20 meters and includes WDR Pro (120dB) for strong performance in high-contrast scenes. Advanced AI functions include human and vehicle detection, region intrusion, line crossing, crowd density, and heat mapping. The built-in 256GB storage ensures reliable local video capture, while the rugged IP67- and IK10-rated housing allows for deployment in demanding outdoor conditions.
Key Features:
- 6MP resolution (2160 × 2160); delivers panoramic imaging at up to 30fps
- 1.65mm fixed lens; supports 180° and 360° fisheye views for full area monitoring
- Built-in IR LEDs; provides up to 20 meters of night vision in complete darkness
- AI analytics; includes line crossing, intrusion, heat mapping, and object classification
- WDR Pro (120dB); ensures image clarity in challenging lighting conditions
- Built-in microphone and two-way audio support; enables real-time communication
- Onboard 256GB storage; supports local video retention without the need for NVR
- Edge dewarping support; enables efficient panoramic image correction
- Triple stream encoding; H.265, H.264, and MJPEG formats supported
- IP67-rated weatherproof and IK10-rated vandal-resistant metal housing
- Power input via 12V DC or PoE (IEEE 802.3af); flexible installation
- Operating temperature range from -30°C to 60°C
- ONVIF Profiles G, S, T, and M compliant; integrates with leading VMS platforms and GV-Cloud VMS
Downloads
Additional Information
Aperture:
|
F2.0
|
Camera Style:
|
Fisheye
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
Ø130.6 mm × 46.3 mm (Ø5.14" × 1.82")
|
Durability:
|
Weather Resistant
Vandal Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
Fixed Iris
|
Lens Size:
|
1.65mm
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Resolution:
|
6MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.5"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
