Description

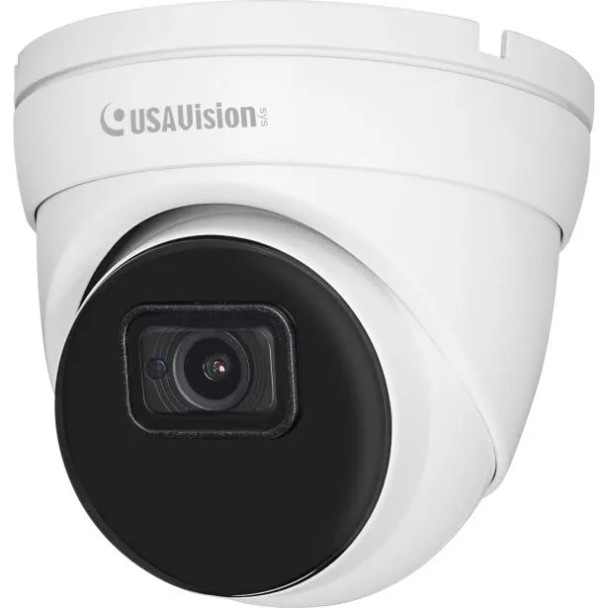

Geovision UA-R800F2 8 MP Outdoor Turret IP Security Camera - 84-R800F20-UA00
UA-R800F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE. This camera also supports AI functions. Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with USAVision Standalone Network Video Recorder (UA-SNVR1620-P and UA-SNVRL810-P), it supports smart premier protection, real-time alert, event playback, and more.
Key Features:
- High quality imaging with progressive scan CMOS
- Triple streams from H.265, H.264
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Built-in micro SD card slot, up to 256 GB
- Ingress protection (IP66)
- DC 12V / PoE (IEEE 802.3af)
- P2P function for GV-Eye app
- ONVIF conformant
- Intelligent analytics: Pedestrian, Vehicle, Face Detection
Downloads
Datasheet
Geovision-84-R800F20-UA00-Datasheet-A1
Additional Information
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Turret
|
|
Compression:
|
H.264
H.265
|
|
Day/Night:
|
IR cut filter
|
|
Dimensions:
|
Ø 100 x 90 mm (Ø 3.9” x 3.5”)
|
|
Durability:
|
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
8MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/20000s
|
|
Storage Humidity:
|
0% to 95% RH
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR Pro
|
