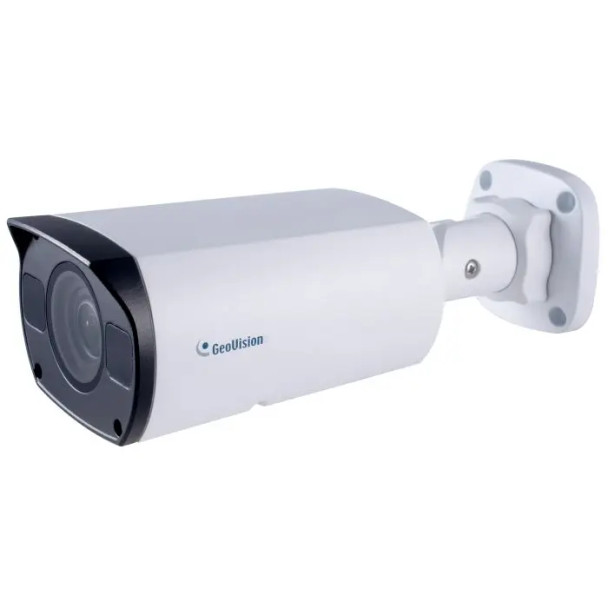

Geovision GV-TBL8810 8MP Outdoor Bullet IP Security Camera with 2.8–12mm Lens and Built-In IR - 84-TBL881W-0010
The Geovision GV-TBL8810 is an 8MP outdoor bullet IP security camera equipped with advanced AI analytics and a motorized 2.8–12mm varifocal lens offering 4.3x optical zoom. It delivers 4K UHD video at up to 20fps and supports full WDR Pro (120dB) for balanced image exposure in complex lighting conditions. Designed for low-light performance with a minimum illumination of just 0.003 lux and supported by intelligent IR with a range of up to 50 meters, the camera ensures reliable imaging both day and night. AI-based analytics include face detection, people flow counting, and classification of humans and vehicles with intrusion and line crossing detection. The device is enclosed in a rugged IP67- and IK10-rated housing and supports two-way audio, edge storage via microSD, and integration with ONVIF-compliant systems and Geovision's VMS.
Key Features:
- 8MP resolution (3840 × 2160); streams UHD video at up to 20fps
- 2.8–12mm motorized lens with 4.3x optical zoom; horizontal field of view from 29.2° to 107.4°
- Built-in intelligent IR; supports night vision up to 50 meters
- WDR Pro with 120dB dynamic range; enhances visibility in high-contrast lighting
- Minimum illumination of 0.003 lux (color), 0 lux with IR on
- AI analytics; includes human/vehicle classification, face detection, intrusion, and people counting
- Supports triple streaming with H.265, H.264, and MJPEG encoding
- microSD card slot; supports SD/SDHC/SDXC/UHS-I cards for local storage
- Built-in support for two-way audio (external microphone and speaker required)
- IP67-rated weatherproof and IK10-rated vandal-resistant housing
- Power input via 12V DC or PoE (IEEE 802.3af); flexible installation options
- Operating temperature range from -30°C to 60°C
- ONVIF Profiles G, S, T, and M compliant; ensures integration with major VMS platforms
Additional Information
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Bullet
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
244 × 96 × 74 mm (9.6" × 3.8" × 2.9")
|
|
Durability:
|
Weather Resistant
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8~12mm
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
8MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
