Description
Geovision GV-TFD4800 4MP Night Vision Indoor Dome IP Security Camera with 2.8mm Fixed Lens - 84-TFD480W-0010
GV‐TFD4800 is an indoor, fixed, network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, playback and more.
Key Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.7" progressive scan CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Wide Dynamic Range Pro (WDR Pro)
- 3-axis mechanism (pan / tilt / rotate)
- Two-way audio
- One sensor input and one alarm output
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Built-in microphone
- Pigtail-free
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- Tampering alarm
- Smartphone app support
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Downloads
Datasheet
Geovision-84-TFD480W-0010-Datasheet-A1
User Manual
Geovision-84-TFD480W-0010-User-Manual-A1
Quick Start Guide
Geovision-84-TFD480W-0010-Quick-Start-Guide-A1
Additional Information
|
Alternative SKUs:
|
GV-TFD4800
115-TFD4800-0010
|
|
Analytics:
|
Motion Detection
Perimeter Protection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
LVD
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
Day (Color)
Night (B/W)
|
|
Dimensions:
|

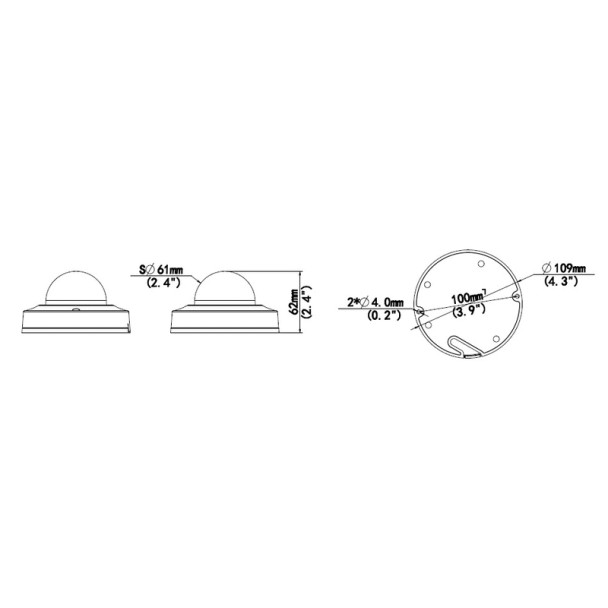

109 x 62 mm (4.3 x 2.4 in)
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
101.1
|
|
Focus:
|
Fixed
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Image Settings:
|
Privacy Mask
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Czech
French
German
Hungarian
Italian
Japanese
Polish
Portuguese
Russian
Spanish
Traditional Chinese
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
4.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux
|
|
Mobile Apps:
|
GV-Eye
iOS
Android
|
|
Mounting:
|
Wall Mount
Pendant Mount
Corner Mount
Pole Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Geovision GV-TFD Series
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
