Geovision 88-SN8FE3-ADR 8-Channel NVR 5x Camera IP Security Camera System

88-SN8FE3-ADR
Save
19%
Geovision 88-SN8FE3-ADR 8-Channel NVR 5x Camera IP Security Camera System
Hover on image to enlarge
$884.00
$715.00
You save: $169.00 (19%)
+
Lens Type (Systems):Fixed Lens Pre-Installed Storage:2TB Storage Recorder Channel Capacity:8 Channel Security Camera Types:Dome Security Cameras Surveillance Technology:IP Security System Number of Security Cameras:5 camera system Manufacturer:Geovision Product Type:Systems Environmental:Indoor and Outdoor
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Description

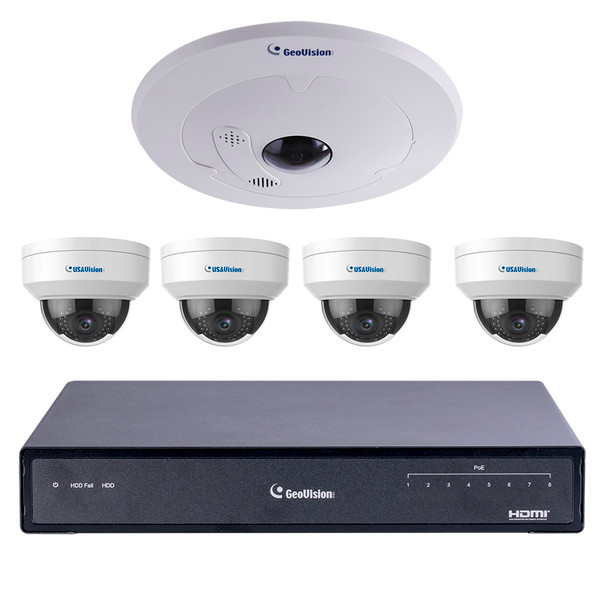

Geovision 88-SN8FE3-ADR 8-Channel NVR 5x Camera IP Security Camera System

World's first SNVR to support integration with 360° anti-blindspot fisheye camera.

Bundled Items: 1x GV-SNVR0811, 1x GV-FE3402, 4x UVS-ADR1300, 1x 2TB HDD

The GV-SNVR0811 is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 8 channels of GV-IP Cameras for network surveillance. GV-SNVR0811 has 8-port built-in PoE (IEEE 802.3at), functioning to carry network and power to IP cameras. Featuring with up to 4K resolution video output, GV-SNVR0811 eliminates the need for a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB flash drive to import or export system settings, update firmware, save snapshot files and back up video in AVI format.

Cover all corners efficiently with the Geovision GV-FE3402 3 MP H.264 WDR Pro Fisheye IP Camera. The 1/3.2" progressive scan (3 MP) CMOS image sensor is designed to deliver excellent image quality. Capable of offering up to 15 fps at 2048 x 1536, this camera will give you smooth videos. Not only that, the 360° and 180° panorama view helps you to get a wide and comprehensive coverage of the monitored area.

The Mini Fixed Rugged Dome UVS-ADR1300 is an outdoor, fixed, network camera equipped with an automatic IR‐cut filter and 30 IR LEDs for day and night surveillance. The camera adheres to IP66 and IK10 standards.



Key Features of Geovision 88-SN8FE3-ADR

  • 8-Channel NVR Network Video Recorder
  • 4K HDMI video output
  • The NVR Supports H.265 Compression
  • 2TB Pre-installed HDD
  • 1x 3MP Fisheye Camera
  • 4x 1.3MP Mini Dome Camera
  • Built-in micro SD card slot
  • Vandal Proof Cameras
Key Features of Geovision GV-SNVR0811
  • 8-Channel video recording
  • Support for third‐party IP cameras through ONVIF and RTSP protocol
  • Up to 3840 x 2160 resolution for each channel
  • Remote live view through Web browser
  • Fisheye dewarping
  • 8-Port PoE (IEEE 802.3at) for camera connection
  • 4K HDMI video output
  • 1 SATA HDD drawer (3.5") for up to 8 TB storage
  • Smart device access (iOS and Android)
Key features of Geovision GV-FE3402
  • 3MP
  • 1.19mm Fisheye Lens
  • H.264, MJPEG
  • WDR Pro
  • Built-in Mic and Speaker
  • Vandal Proof
Key features of Geovision UVS-ADR1300
  • 1.3MP
  • 2.8mm Fixed Lens
  • IR distance up to 30 m (98.4 ft)
  • Wide Dynamic Range (WDR)
  • Weatherproof and Vandal Proof

*Note: Cable is not included.

Features

Manufacturer:
Geovision
Product Type:
Systems
Environmental:
Indoor and Outdoor

Security Camera Systems Features

Lens Type (Systems) :
Fixed Lens
Pre-Installed Storage:
2TB Storage
Recorder Channel Capacity:
8 Channel
Security Camera Types:
Dome Security Cameras
Surveillance Technology:
IP Security System
Number of Security Cameras:
5 camera system
Technical Specs

Geovision GV-SNVR0811

  • 8-Channel video recording
  • Automatic search and set-up for IP cameras
  • Support for third‐party IP cameras through ONVIF and RTSP protocol
  • Up to 3840 x 2160 resolution for each channel
  • Dual streams support
  • Continuous, motion and scheduled recordings
  • Timeline playback
  • Multi-channel playback
  • Display of HDD status and system temperature
  • DST (Daylight Saving Time) support
  • NTP (Network Time Protocol) support
  • GeoVision DDNS server support
  • E-mail notification for recording error and password retrieval
  • Recording export
  • Remote live view through Web browser
  • Fisheye dewarping
  • Support for GV-Video Server through RTSP protocol
  • PTZ control using GV-Joystick or on-screen panel
  • 8-Port PoE (IEEE 802.3at) for camera connection
  • 4K HDMI video output
  • 1 SATA HDD drawer (3.5") for up to 8 TB storage
  • Smart device access (iOS and Android)
  • Support for 13 languages

Geovision UVS-ADR1300

  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.02 lux (B/W and color)
  • Triple streams from H.264 or MJPEG
  • Up to 30 fps at 1280x960
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Day and night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP66)
  • Wide temperature tolerance (-35°C ~ 60°C / -31°F ~ 140°F)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UJS‐I, Class 10) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile S) conformant

Geovision GV-FE3402

  • 1/3.2" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 15 fps at 2048 × 1536
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • Vandal resistance (IK10+ for metal casing)
  • POE+ (IEEE 802.3at)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Built-in microphone and speaker
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Defog
  • Tampering alarm
  • Virtual PTZ function
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
Datasheets

Bundle Specsheet (geovision-GV-SNVR0811_Bundle_Package-A1.pdf, 3,593 Kb) [Download]

SNVR0811 Specsheet (geovision-Datasheet_SNVR0811-A1.pdf, 5,431 Kb) [Download]

SNVR Integration Patch PDF (geovision-GV-SNVR_Integration_Patch-A1.pdf, 454 Kb) [Download]

FE3402 Specsheet (geovision-Datasheet_IPCamH264FE3402-A1.pdf, 1,575 Kb) [Download]

UVS-ADR1300 User Manual (geovision-UVS-ABD1300,_UVS-ABL1300,_UVS-ADR1300_user_manual_UVS1300V101-A_-A1.pdf, 9,458 Kb) [Download]

UVS-ADR1300 Specsheet (geovision-Datasheet_UVSIPCamADR1300-A1.pdf, 453 Kb) [Download]

Reviews

Works great. Easy to setup. User Interface is easy to understand. Does what it's supposed to -- records multiple video streams. A1 was easy to deal with, and shipped the product fast. Nice.
This is the best price on web. Excellent picture quality. A+ system. I had concerns about the storage amount but its been a week now and still recording.
Write a review
