Description

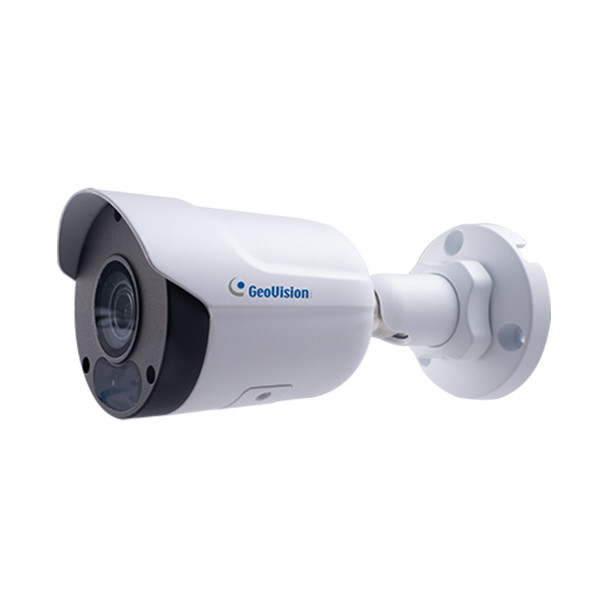

Geovision GV-TBL4705 4MP H.265 Night Vision Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro - 84-TBL475W-0010
The Bullet IP Camera is an outdoor network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 standards and can be powered through PoE.
Key Features:
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.003 lux
- Iris: Fixed
- Focal Length (mm): 4mm
- Horizontal FOV: 83.7°
- Maximum Aperture: F/1.6
- Dual streams from H.265, H.264 or MJPEG
- Wide Dynamic Range Pro (WDR Pro)
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 50 m (165ft)
- Built-in microphone
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP67)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Packing List:
- GV-TBL4705 Bullet
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
- Warranty Card
Replacement of:
GV-TBL4703-0F
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
CE
RoHS
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
83.7
|
|
IR LED Quantity:
|
2
|
|
Image Settings:
|
Privacy Mask
|
|
Languages:
|
English
French
German
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
6 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.6 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
165
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Geovision GV-TBL Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
WDR Pro
|
