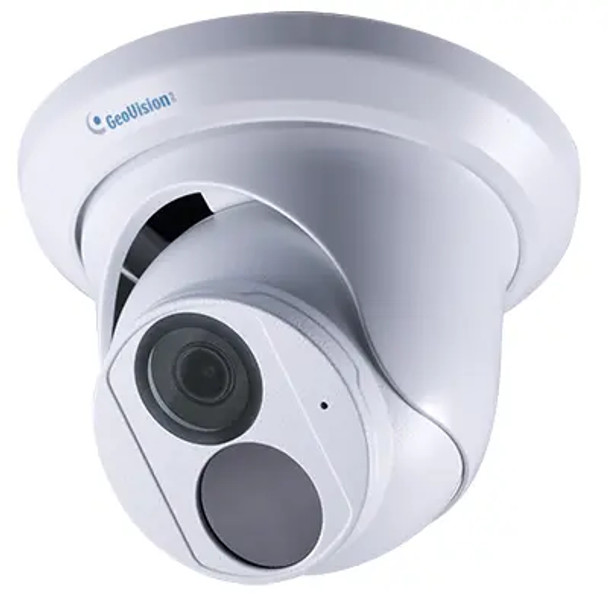

Geovision GV-EBD4704 4MP Night Vision Outdoor Eyeball IP Security Camera with Built-in Microphone - 84-EBD474W-0010
GV-EBD4704 is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.
Key Features:
- 1/3" progressive scan super low lux CMOS
- Dual streams from H.265, H.264 or MJPEG
- Min. illumination at 0.003 lux
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Wide Dynamic Range Pro (WDR Pro)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Replacement of:
GV-EBD4701
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Eyeball
|
|
Certifications:
|
CE
FCC
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
101
|
|
IR LED Quantity:
|
1
|
|
Image Settings:
|
Privacy Mask
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
6 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Geovision GV-EBD Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Web Browser:
|
Edge
Chrome
Firefox
Safari
|
|
Wide Dynamic Range (WDR):
|
WDR Pro
True WDR 120dB
|
