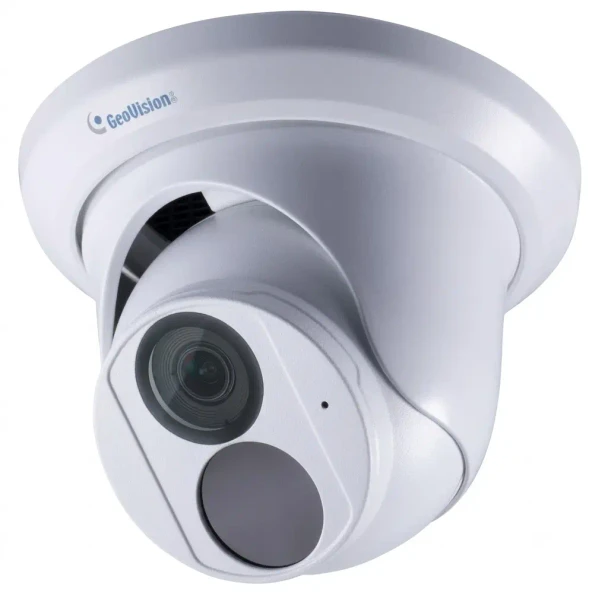

Geovision GV-EBD8800 8MP(4K) Outdoor Eyeball IP Security Camera with 2.8mm Lens and Built-In IR - 84-EBD880W-0010

Geovision GV-EBD8800 8MP(4K) Outdoor Eyeball IP Security Camera with 2.8mm Lens and Built-In IR - 84-EBD880W-0010

The Geovision GV-EBD8800 is an 8MP outdoor eyeball dome network camera built around a 1/2.7 inch progressive scan low-lux CMOS sensor. It captures 3840 x 2160 at up to 20 fps and combines H.265 compression with triple streaming, delivering 4K detail while keeping bandwidth and storage requirements manageable across multi-camera deployments.

Deep learning AI distinguishes humans and vehicles from other moving objects, powering perimeter protection rules including cross line, enter area, leave area and intrusion detection, along with face detection, people flow counting and crowd density monitoring. Integrated with GeoVision Video Management Software, these analytics support real-time alerts and event playback. Note that all perimeter protection rules can run together, but only one AI function group can be active at a time due to hardware resource limits.

A fixed 2.8mm F2.0 lens delivers a 112 degree horizontal field of view, and WDR Pro reaches up to 120 dB for balanced exposure in high-contrast scenes. Minimum illumination is rated at 0.01 lux in color and 0 lux with the intelligent IR active, which reaches up to approximately 100 ft. The camera includes a removable IR-cut filter for true day/night operation, a built-in microphone with G.711 audio, and a microSD slot supporting cards up to 512 GB. A 3-axis mechanism simplifies aiming, and corridor format is supported for tall, narrow scenes. The housing carries an IP67 rating and operates from -22 °F to 140 °F on PoE (IEEE 802.3af) or 12 VDC power, with ONVIF Profile S, G, T and M conformance for third-party VMS integration.

Key Features:

• 8MP (3840 x 2160) resolution with 1/2.7 inch low-lux CMOS sensor; captures 4K detail for identifying faces and vehicles across a wide scene.
• Deep learning AI with human and vehicle classification; filters perimeter events so operators respond to real threats instead of nuisance motion.
• Perimeter protection with cross line, enter area, leave area and intrusion rules; automates detection along boundaries and restricted zones.
• Face detection, people flow counting and crowd density monitoring; adds business intelligence alongside security functions.
• WDR Pro up to 120 dB with 0.01 lux low-light rating; balances harsh lighting and retains detail after dark.
• Intelligent IR up to 100 ft with removable IR-cut filter; delivers true day/night imaging in complete darkness.
• Triple streaming from H.265, H.264 or MJPEG; serves live view, recording and mobile access at different resolutions simultaneously.
• Built-in microphone with G.711 audio; adds audio evidence without a separate microphone install.
• 3-axis mechanism with corridor format support; simplifies aiming and matches the image to tall, narrow scenes.
• IP67 rated housing with -22 °F to 140 °F operating range; withstands outdoor weather exposure.
• ONVIF Profile S, G, T and M conformance with GeoVision VMS integration; fits both GeoVision and third-party platforms.
