Description

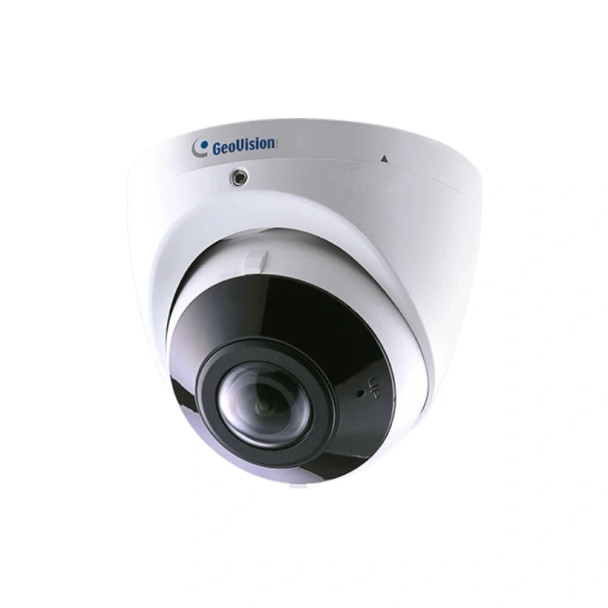

Geovision GV-EBDP5800 5MP Outdoor Dome IP Security Camera - 84-EBDP580-0010
Securely monitor your surroundings with the GV-EBDP5800 5MP Outdoor 180° Panoramic Network Turret Camera from GEOVISION. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2880 x 1620 resolution video at 30 fps. Two IR LEDs provide a night vision range up to 65'. The camera is equipped with a 1.68mm fixed lens that delivers a 180° horizontal angle of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
Key Features:
- 2880 x 1620 Resolution at 30 fps
- IR LEDs for Night Vision up to 65'
- 1.68mm Fixed Lens
- 180° Horizontal Angle of View
- Built-In Microphone
- Supports microSD/SDHC/SDXC Cards
- RJ45 Ethernet with PoE Technology
- Complies with ONVIF Profiles G, M, S & T
- IP67 Rated for Outdoor Use
- IK10-Rated Impact Resistance
Downloads
Datasheet
Geovision-84-EBDP580-0010-Datasheet-A1
Additional Information
|
Aperture:
|
F2.0
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
Ø 111 x 93 mm (Ø 4.4” x 3.7”)
|
|
Durability:
|
Vandal Resistant
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
1.68mm
|
|
Lens Type:
|
Fixed Lens
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK10
IP67
|
|
Resolution:
|
5MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
