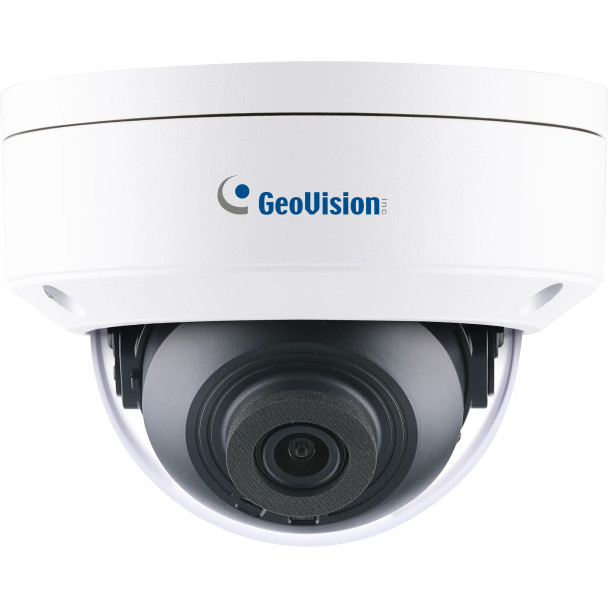

Geovision GV-GDR2801-2F 2MP Outdoor Dome IP Security Camera with 2.8mm Fixed Lens and AI Deep-Learning
GV‐GDR2801 is a 2 MP outdoor mini fixed rugged IP Dome. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidth. GV‐GDR2801 adheres to IP67 and IK10 standards and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.
Key Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.8" progressive scan CMOS sensor
- Triple streams from H.265, H.264 or MJPEG
- Min. illumination at 0.008 lux
- Up to 30 fps at 1920 x 1080
- Intelligent IR
- Wide Dynamic Range Pro (WDR Pro)
- IR distance up to 30 m (100 ft)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Built-in microSD card slot (SD / SDHC / SDXC) for local storage
- One-way audio capable
- 3D noise reduction
- AI analytics (Line Crossing, Region Intrusion)
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T, M) conformant
- 21 languages supported
Downloads
Datasheet
Geovision-GV-GDR2801-2F-Datasheet-A1
Additional Information
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
4 Watts
|
|
Night Vision Range (ft):
|
100
|
|
Protection Code:
|
IK10
IP67
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
>50 dB
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
