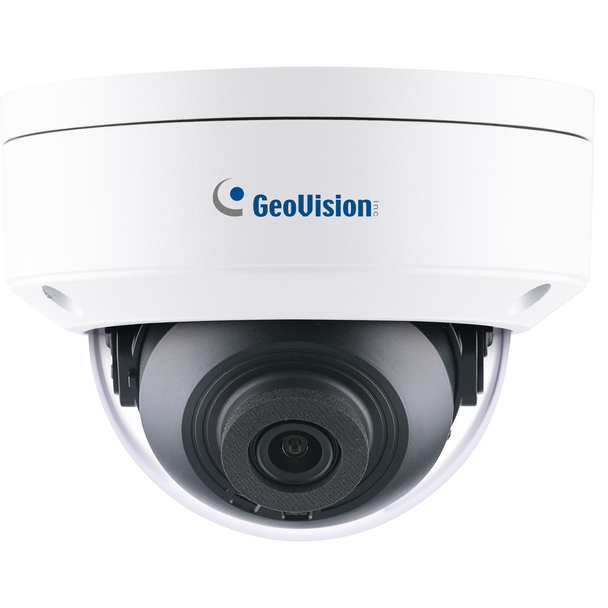

Geovision GV-GDR2801-3F 2MP Outdoor Mini Dome IP Security Camera with 3.6mm Lens and Built-In IR - 84-GDR2801-3F10

Geovision GV-GDR2801-3F 2MP Outdoor Mini Dome IP Security Camera with 3.6mm Lens and Built-In IR - 84-GDR2801-3F10

The Geovision GV-GDR2801-3F is a 2MP outdoor mini fixed rugged IP dome camera built around a 1/2.8 inch progressive scan CMOS sensor. Its compact, vandal-resistant form factor suits discreet installations in entrances, corridors and tight ceiling spaces where a full-size dome would be intrusive, while H.265 compression with triple streaming keeps bandwidth and storage requirements low.

Deep learning AI distinguishes humans and vehicles from other moving objects, powering line crossing and region intrusion detection with real-time alerts through GeoVision Video Management Software. Minimum illumination is rated at 0.008 lux in color and 0 lux with the intelligent IR active, which reaches up to approximately 100 ft, and WDR Pro delivers 120 dB for balanced exposure in high-contrast scenes such as doorways.

A 3.6mm fixed lens provides an 89 degree horizontal field of view, and a removable IR-cut filter enables true day/night operation. The camera supports one-way audio with G.711 compression via an external microphone, includes 3D noise reduction, and records locally to microSD cards up to 256 GB. A 3-axis mechanism simplifies aiming and corridor format is supported for tall, narrow scenes. The metal housing carries IP67 and IK10 ratings, operates from -22 °F to 140 °F, and is powered by PoE (IEEE 802.3af) or 12 VDC, with ONVIF Profile G, S, T and M conformance for third-party VMS integration.

Key Features:

• 2MP (1920 x 1080) resolution with 1/2.8 inch progressive scan CMOS sensor at up to 30 fps; captures clear detail for identifying subjects.
• Compact rugged mini dome form factor; installs discreetly in entrances, corridors and tight ceiling spaces.
• Deep learning AI with human and vehicle classification; filters line crossing and intrusion events so operators respond to real threats.
• WDR Pro at 120 dB with 0.008 lux low-light rating; balances harsh lighting and retains detail in dim conditions.
• Intelligent IR up to 100 ft with removable IR-cut filter; delivers true day/night imaging in complete darkness.
• Triple streaming from H.265, H.264 or MJPEG; serves live view, recording and mobile access at different resolutions simultaneously.
• One-way audio with G.711 and 3D noise reduction; adds audio evidence via an external microphone.
• IP67 and IK10 rated metal housing; withstands weather exposure and vandalism attempts.
• 3-axis mechanism with corridor format support; simplifies aiming and matches the image to tall, narrow scenes.
• PoE (IEEE 802.3af) or 12 VDC power with microSD recording up to 256 GB; simplifies cabling and adds edge storage.
• ONVIF Profile G, S, T and M conformance with GeoVision VMS integration; fits both GeoVision and third-party platforms.
