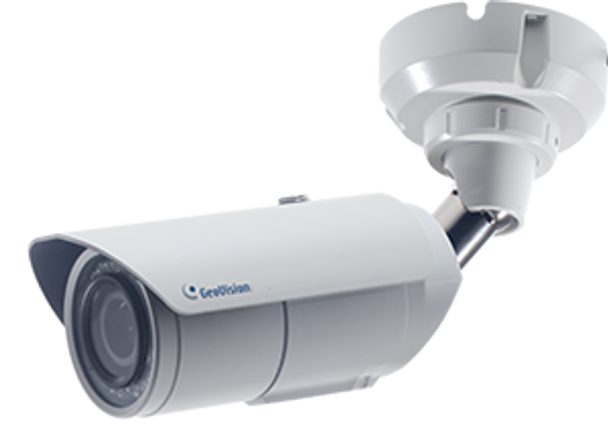

Geovision GV-LPC2011 2MP License Plate Recognition Bullet IP Security Camera 84-LPC2011-0010

GV-LPC2011 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 60 km/h (37 mph) or less with extreme temperatures (-30°C ~ 50°C / -22°F ~ 122°F) resistance. It is weather proof (IP67). Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 9 m (29.6 ft). The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. This ONVIF compatible camera also allows automatic and precise control of exposure using its P‐iris, producing images with better clarity and contrast.

Key features of Geovision GV-LPC2011

1/2.8″ color progressive scan super low lux CMOS
Motorized varifocal lens for remote focus / zoom adjustment
Dual streams from MJPEG or H.264
Up to 30 fps at 1920 x 1080
Maximum Speed 60 km/h (37 mph)
Recognition for reflective License Plate only
Intelligent IR up to 30ft
Day and Night function (with removable IR-cut filter)
Megapixel lens
P-iris lens for auto iris control
Maximum IR distance 9 m (29.6 ft)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
DC 12V / PoE (IEEE 802.3af)
Wide Dynamic Range (WDR)
3D noise deduction
Defog, Motion detection, Privacy Mask, Text Overlay, Tampering Alarm, IP address filtering
Supports iPhone, iPad, Android & 3GPP
ONVIF (Profile S) conformant
30 languages on Web interface

Manufacturer:

Geovision

Product Type:

Cameras

Warranty:

2-year Manufacturer Warranty

Color:

White

Environmental:

Outdoor

Specialized Camera Feature:

License Plate Recognition (LPR)

Night Vision Range (ft):

30ft

Compression:

H.264
MJPEG

Discontinued:

no

Security Camera Features

Lens Size:

3~9mm

Lens Type :

Motorized (Automatic Zoom) Lens

Max. FPS and Resolution:

30fps at 1080P

Resolution:

2MP

Sensor Size:

1/2.8"

Sensor Type:

CMOS

Technology:

Network (IP)

Camera Style:

Bullet

Key Features:

License Plate Capture

Vandal Proof:

Yes

Weatherproof:

Yes

Camera
Image Sensor		1/2.8” progressive scan super low lox CMOS
Picture Elements		1920 (H) x 1080 (V)
Camera Type		Color, B/W
Minimum Illumination	Color	0.05 Lux
	B/W	0.04 Lux
	IR ON	0 Lux
Shutter Speed		Auto / Manual (1/120 ~ 1/2000 sec)
White Balance		Auto / Manual (2800K ~ 8500K)
S/N Ratio		56 dB
WDR		Yes
Dynamic Range		Up to 72 dB
Max. Speed		60 km/h (37 mph)
Lens
Megapixel		2 MP
Day/Night		Yes
Lens Type		Motorized varifocal lens
Focal Length		3 ~ 9 mm
Maximum Aperture		F/1.7
Mount		Ø 14 mm
Image Format		1/2.7"
Horizontal FOV		102° ~ 40°
Operation	Focus	Remote Focus
	Zoom	3x Optical Zoom
	Iris	P-Iris
IR LED Quantity		24 IR LEDs
IR Distance		5 ~ 9 m (16.4 ~ 29.6 ft)
Operation
Video Compression		H.264, MJPEG
Video Stream		Dual streams from H.264 or MJPEG
Frame Rate		30 fps at 1920 x 1080 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance, Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity, Denoise, Defog, Metering.
Audio Compression		N/A
Audio Support		N/A
Video Resolution
Main Stream	16:9	1920 x 1080, 1280 x 720
Sub Stream	16:9	640 x 360
TV-Out		N/A
Network
Interface		10/100 Base-T Ethernet, RJ-45 connector
Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 360°
	Tilt	90° ~ 180°
Connectors	Power	2-pin terminal block, PoE
	Ethernet	RJ-45
	Audio	N/A
	Digital I/O	N/A
	TV-Out	N/A
LED Indicator		N/A
General
Environment Temperature	Start-up	-20°C ~ 50°C (-4°F ~ 122°F)
	Operation	-30°C ~ 50°C (-22°F ~ 122°F)
Humidity		10% ~ 90% (non-condensing)
Power Source		DC 12V, PoE (IEEE 802.3af)
Max. Power Consumption		12.3 W

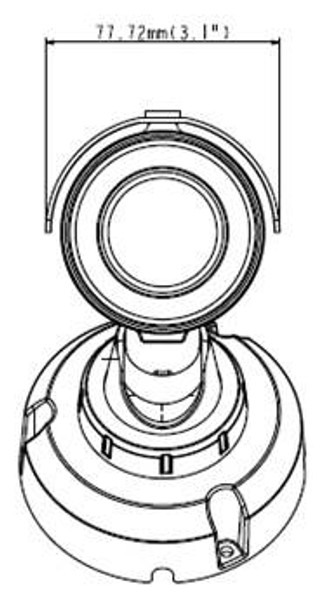

Dimensions		142.14x 77.72 x 102.75 mm (5.6" x 3.06" x 4.05")
Weight		810 g (1.8 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Regulatory		CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE standard		IEEE (802.3af Power over Ethernet / PD)
PoE Power Supply Type		End-Span
PoE Power Output		Per Port 48V DC, 350 mA, Max. 15.4 watts
Web Interface
Installation & Management		Web-based configuration
Firmware Upgrade		Remote upgrade through Web Browser GV-IP Device Utility included in the Software DVD
Access from Web Browser		Camera Live View, Video Recording, Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Motion Detection, IP Address Filtering, Digital PTZ
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English /French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Application
Network Storage		GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
Smart Device Access		GV-Eye for Android and iOS Embedded 3GPP/ISMA browser
Live Viewing		IE, Chrome, Firefox, Edge, Safari
CMS Server support		GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
LPR Management		GV-ASManager

LPC2011 Datasheet (gv-Datasheet_IPLPC2011-A1.pdf, 507 Kb) [Download]

GV-LPR_Camera_Installation_Guide(LPR-QG-D) (GV-LPR_Camera_Installation_Guide(LPR-QG-D)-A1.pdf, 694 Kb) [Download]

Customer Reviews
5.00

Average Rating based on 2 ratings

5 Star

2

4 Star

0

3 Star

0

2 Star

0

1 Star

0

Recommendation
0.00 % recommend

based on 0 recommendation

0

Would you recommend this item ?

Yes No

Write A Review

Write a review

Most Helpful

The camera performs what it’s designed for but isn’t so impressive. Overall the performance of the camera is ok. The features of the camera to resist climate and tamper are its saving grace. There is however another reason the camera is somewhat good. It is easy to find a replacement or a similar model. It should be apparent that a camera that comes with thirty languages on its web interface must sell. The zoom and focus adjustment at least provide a smooth transition without losing track of the plate. The maximum speed it can catch is perfect for installation at or near entry/exit points.

S

Sam Gunter
11/15/2017, 02.40 PM

Most Critical

No Reviews

Sam Gunter

11/15/2017, 02.40 PM

The camera performs what it’s designed for but isn’t so impressive. Overall the performance of the camera is ok. The features of the camera to resist climate and tamper are its saving grace. There is however another reason the camera is somewhat good. It is easy to find a replacement or a similar model. It should be apparent that a camera that comes with thirty languages on its web interface must sell. The zoom and focus adjustment at least provide a smooth transition without losing track of the plate. The maximum speed it can catch is perfect for installation at or near entry/exit points.

Philip G.

11/03/2017, 11.40 AM

All day shifts are easy to handle with this camera. Where I work the entry way to the office is far from the road. We use the camera to identify employee vehicles and separate them from visitor vehicles before they approach the gate. The camera does a very good of keeping up with the cars but they do usually travel around 25 miles per hour. The picture quality is clear enough to read number plates that are chipped, dirty or bent without having to squint while looking at the screen. There is no noticeable bandwidth consumption caused by the camera but they are positioned very close to routers which can be a cause. The cameras face no difficulty reading plates at night but were installed by a security firm so maybe the height they are placed at can be adding to its quality.

Packing List:
