Description

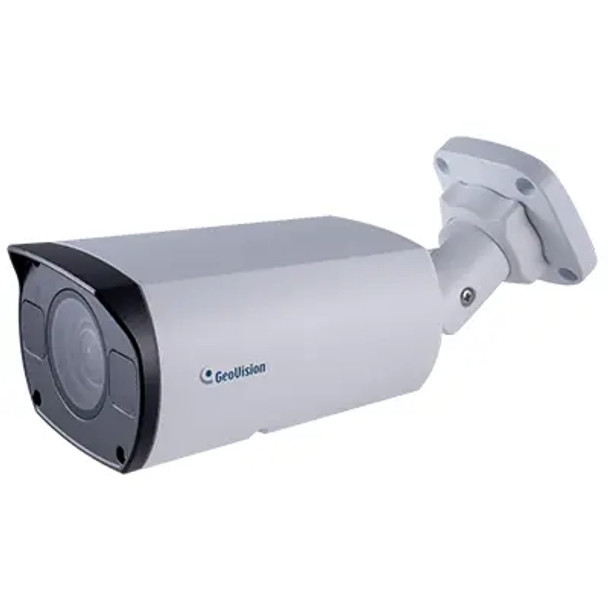

Geovision GV-TBL4810 4MP Night Vision Outdoor Bullet IP Security Camera with 5x Optical Zoom - 84-TBL480W-0010
GV-TBL4810 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
Key Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.002 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 50 m (165 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- Two-way audio
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- ONVIF (Profile G, S, T) conformant
Packing List:
- GV-TBL4810 Bullet
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
Replacement of:
GV-TBL4710
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Perimeter Protection
|
|
Aperture:
|
F1.2
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
External Microphone
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
CE
RoHS
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Digital Input:
|
1
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
98
31
|
|
IR LED Quantity:
|
3
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
8.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 4MP
|
|
Mobile Apps:
|
Android
iOS
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-T
|
|
Night Vision Range (ft):
|
165
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Optical Zoom:
|
5x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Geovision GV-TBL Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Specialized Camera Feature:
|
Artificial Intelligence (AI)
Deep-learning
|
|
Technology:
|
Network (IP)
|
|
Web Browser:
|
Internet Explorer
Edge
Chrome
Firefox
Safari
|
|
Wide Dynamic Range (WDR):
|
WDR Pro
True WDR 120dB
|
