Geovision GV-TBL8804 8MP AI H.265 IR Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro, AI Deep-Learning

Brand: Geovision
Part Number: GV-TBL8804
Write a Review
  • Geovision GV-TBL8804 8MP AI H.265 IR Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro, AI Deep-Learning
  • Geovision GV-TBL8804 8MP AI H.265 IR Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro, AI Deep-Learning
  • Geovision GV-TBL8804 8MP AI H.265 IR Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro, AI Deep-Learning
  • Geovision GV-TBL8804 8MP AI H.265 IR Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro, AI Deep-Learning
$280.00
$249.08
— You save $30.92

Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 86°Field of View
  • Max. FPS and Resolution : 20fps at 3840 x 2160
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Aperture : F2.0

Description

Geovision GV-TBL8804 8MP AI H.265 IR Outdoor Bullet IP Security Camera, Super Low Lux, WDR Pro, AI Deep-Learning

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL8804 adheres to IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Key Features:

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.7" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Iris: Fixed lens
  • Focal Length (mm): 4mm
  • Horizontal FOV: 86°
  • Maximum Aperture: F/2.0
  • Triple streams from H.265, H.264 or MJPEG
  • Wide Dynamic Range Pro (WDR Pro)
  • Up to 20 fps at 3840 x 2160
  • Intelligent IR
  • IR distance up to 30 m (100ft)
  • Day and Night function (with removable IR-cut filter)
  • Alarm sound and white LED light triggered on AI detection events
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio
  • DC 12V / PoE (IEEE 802.3af)
  • ONVIF (Profile G, S, T) conformant
Packing List:
  • GV-TBL8804 IR Bullet IP Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Analytics:
Perimeter Protection
Aperture:
F2.0
Audio Capability:
Two-way Audio
Audio Compression:
G.711
Camera Style:
Bullet
Certifications:
FCC CE RoHS
Color:
White
Compatible Integration (API):
ONVIF Profile G ONVIF Profile S ONVIF Profile T
Compression:
H.265 H.264 MJPEG
Day/Night:
ICR (True Day/Night) Day (Color) Night (B/W)
Dimensions:

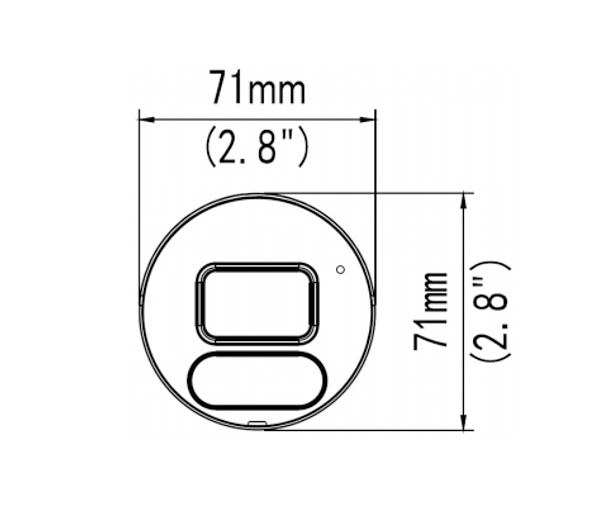

187 x 71 x 71 mm (7.4 x 2.8 x 2.8 in)
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
86
IR LED Quantity:
2
Languages:
English French German Italian Russian
Lens Mount:
M12
Lens Size:
4mm
Lens Type:
Fixed Lens
Max Power Consumption:
10.5 Watts
Max. FPS and Resolution:
20fps at 3840 x 2160
Minimum Illumination (B/W):
0 lux
Minimum Illumination (Color):
0.01 Lux at F2.0 AGC ON
Mobile Apps:
Android iOS
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Night Vision Range (ft):
100
Operating Humidity:
0% to 95% (non-condensing)
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af) 12 VDC 1.25A
Product Series:
Geovision GV-TBL Series
Protection Code:
IP67
Resolution:
8MP (4K)
S/N Ratio:
56 dB
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Shutter Speed:
1-1/100000s
Specialized Camera Feature:
Artificial Intelligence (AI)
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Web Browser:
Internet Explorer Edge Chrome
Wide Dynamic Range (WDR):
WDR Pro
