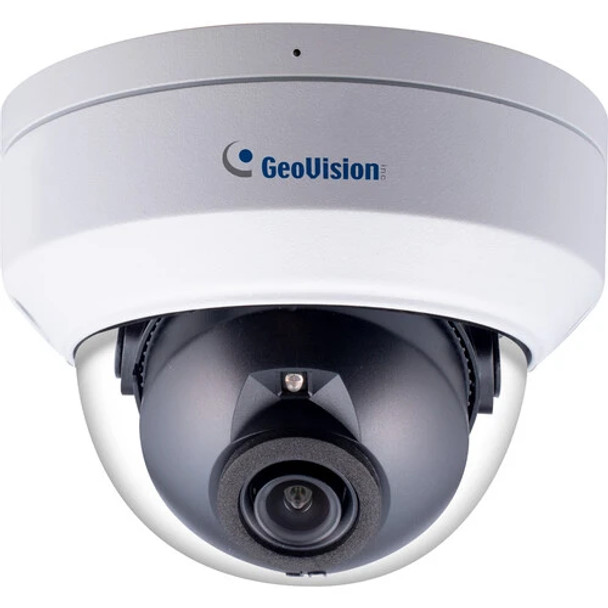

Geovision GV-TDR2705-2F 2MP Outdoor Dome IP Security Camera - 84-TDR2705-2F10
Geovision GV-TDR2705-2F Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.
Key Features:
- 1/2.7" progressive scan low lux CMOS sensor
- Min. illumination at 0.01 lux
- Dual streams from H.265, H.264 or MJPEG
- Up to 30 fps at 1920 × 1080
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) for local storage
- 3-axis mechanism (pan / tilt / rotate)
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
Replacement of:
84-TDR274W-2F10
Downloads
Datasheet
Geovision-84-TDR2705-2F10-Datasheet-A1
Additional Information
|
Aperture:
|
F2.0
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
Ø 109 x 83 mm (Ø 4.3” x 3.3”)
|
|
Durability:
|
Vandal Resistant
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Focus:
|
Fixed
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK10
IP67
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR Pro
|
