Description

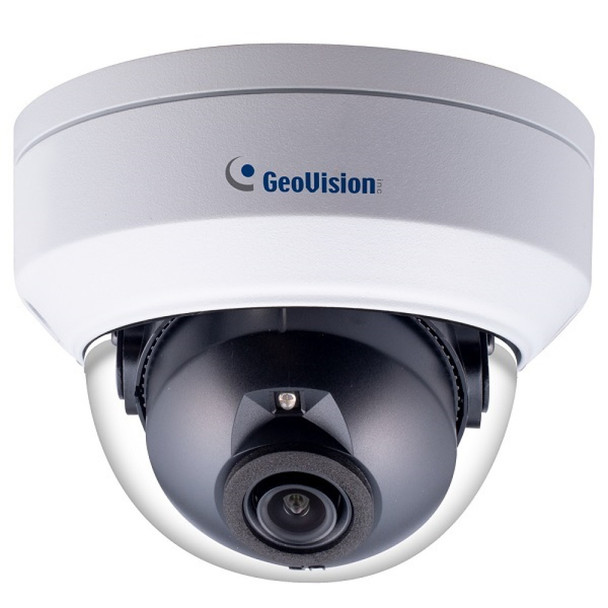

Geovision GV-TDR4803-2F 4MP Night Vision Outdoor Dome IP Security Camera with AI Deep Learning, 2.8mm Fixed Lens - 84-TDR483W-2F10
GV-TDR4803 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE. Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
Key Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Two-way audio
- ONVIF (Profile G, S, T) conformant
Replacement of:
GV-TDR4703-2F
84-TDR474W-4F10
Downloads
Datasheet
Geovision-84-TDR483W-2F10-Datasheet-A1
User Manual
Geovision-84-TDR483W-2F10-User-Manual-A1
Installation Guide
Geovision-84-TDR483W-2F10-Installation-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
GV-TDR4803-2F
GV-TDR4803
125-TDR4803-002
|
|
Analytics:
|
Perimeter Protection
|
|
Aperture:
|
F1.6
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
Night (B/W)
ICR (True Day/Night)
|
|
Dimensions:
|
108.7 x 81.1 mm (4.3 x 3.2 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
101
|
|
IR LED Quantity:
|
1
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Iris:
|
Fixed Iris
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
4.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux
|
|
Mobile Apps:
|
GV-Eye
iOS
Android
|
|
Mounting:
|
Wall Mount
Pole Mount
Corner Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Geovision GV-TDR Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
2-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
