Description

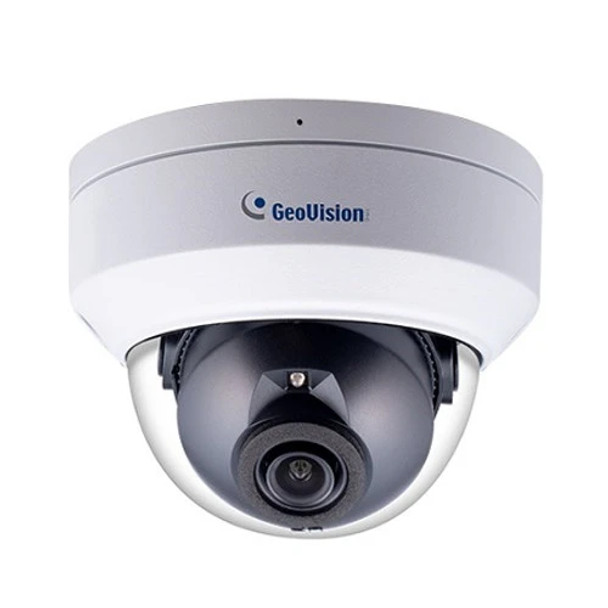

Geovision GV-TDR8805 8MP 4K Night Vision Outdoor Mini Dome IP Security Camera - 84-TDR885W-2F10
GV-TDR8805 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, playback and more.
Key Features:
- Model Number - GV-TDR8805
- Manufacturer SKU Number - 84-TDR885W-2F10
- Sales Part Number - 125-TDR885W-2F10
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.7" progressive scan CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 20 fps at 3840 x 2160
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Two-way audio
- Built-in microphone
- Defog
- 3D noise reduction
- AI analytics (Cross Line, Intrusion, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring)
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Packing List:
- GV-TDR8805 Mini Dome
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Torx Wrench
- Download Guide
Downloads
User Manual
Geovision-GV-TDR8805-User-Manual-A1
Datasheet
Geovision-GV-TDR8805-Datasheet-A1
Quick Start Guide
Geovision-GV-TDR8805-Quick-Start-Guide-A1
Firmware
Geovision-GV-TDR8805-Firmware-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
84-TDR885W-2F10
125-TDR885W-2F10
|
|
Analytics:
|
Motion Detection
Face Detection
Perimeter Protection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Mini Dome
|
|
Certifications:
|
FCC
CE
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
Night (B/W)
ICR (True Day/Night)
|
|
Digital Input:
|
1
|
|
Digital Output:
|
1
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
112.9
|
|
IR LED Quantity:
|
1
|
|
Image Settings:
|
Privacy Mask
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Spanish
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
6 Watts
|
|
Max. FPS and Resolution:
|
20fps at 3840 x 2160
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 lux at F1.6 AGC on
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Geovision GV-TDR Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Web Browser:
|
Internet Explorer
Edge
Firefox
Chrome
Safari
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
