Description

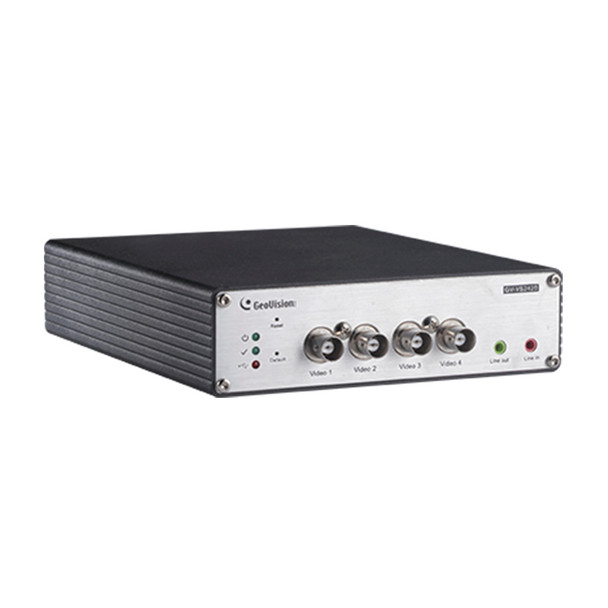

Geovision GV-VS2420 4 Channel AHD to IP Encoder
Keep the existing analog and coax cables, add new AHD cameras, and integrate everything under one VMS.
GV-VS2420 is a powerful H.264 Video Server with compact size and supports multiple applications. It supports 4-channel AHD 1080p / 720p and analog 960H / D1 real-time video, fully integrated with GV-System (GV-DVR/NVR) / GV-VMS to form the most powerful IP solution. GV-VS2420 converts analog signals into high resolution digitized images up to 2 megapixels. It also supports over 50 PTZ models to fulfill various project demands. It can record video to a local USB storage, forming the smallest video recorder. It can also activate Tampering Alarm alerts when cameras are tampered with, which can prevent criminal activities successfully.
Key features:
- H.264
- 4-channel AHD 1080p / 720p and analog 960H / D1 real-time video
- 12V DC
- Tampering Alarm
- USB HDD Storage
- Supports UMTS / 3G / 3.5G / 4G
- Automatic switch between WiFi and 3G
- Supports over 50 PTZ models
- Supports 29 languages on web interface
Other Options:
- 4 Channel GV-VS2400 TVI to IP Encoder
- 8 Channel GV-VS2800 TVI to IP Encoder
- 8 Channel Geovision GV-VS2820 AHD to IP Encoder
- 16 Channel Geovision GV-VS21600 TVI to IP Video Encoder
Notes:
- The GV-Video Server cannot work with the microphones that acquire power from the unit. Use microphones that have external power supply.
- GV-VS2420 supports 1 external hard disk (2.5" or 3.5") with up to 4 TB capacities.
- It is not recommended to use the flash USB drive with GV-VS2420 because of its slow read and write speed.
- Product design and specifications are subject to change without notice.
- When transmitting video signals over a long distance, it is highly recommended to use 5C-FB coaxial cables or above to minimize the degradation of image quality. The transmission distance should be within 300 m (984ft).
SKU: 84-VS24000-T00U
Ordering Part No: 130-VS2420-AHD
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Downloads
Popular Search
Additional Information
Accessory Type:
|
Video Encoder
|
Channel Capacity:
|
4 Channels
|
Compression:
|
H.264
|
Warranty:
|
2-year Manufacturer Warranty
|
