Description

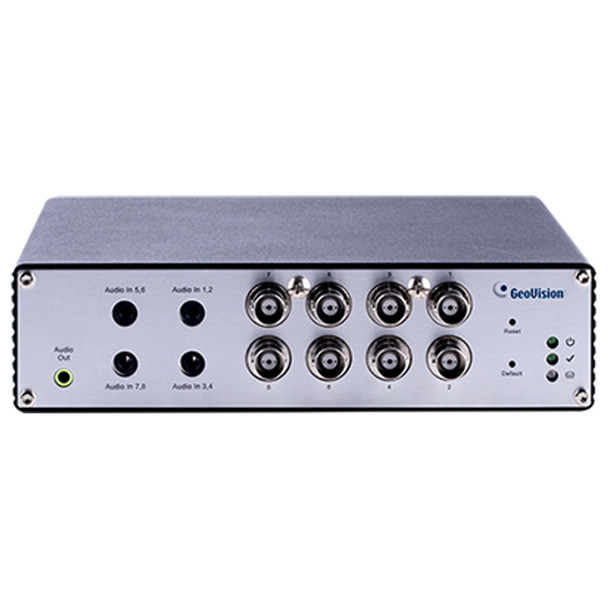

Geovision GV-VS2820 8 Channel AHD to IP Encoder
GV-VS2820 is a powerful H.264 Video Server with compact size and supports 8 channels of AHD 18 fps at 3 M and 15 fps at 4 M, 1080p / 720p and analog 960H / D1 real-time video. It can be fully integrated with GV-DVR / NVR / VMS to form a powerful IP surveillance solution. GV-VS2820 converts analog signals into high-resolution digitized images up to 4 megapixels and supports over 50 PTZ models to fulfill various project demands. It can record videos to a local USB storage, performing as a compact video recorder. It is also able to trigger Tampering Alarm alerts when cameras are tampered with, which can prevent criminal activities.
Key Features:
- H.264
- 8-channel HD-AHD 18 fps at 3 MP and 15 fps at 4 MP
- 8-channel HD-AHD 1080p / 720p and analog 960H / D1 real-time video
- 12V DC
- Tampering alarm
- USB HDD Storage
- Support UMTS / 3G / 3.5G / 4G
- Automatic switch between WiFi and 3G / 4G
- Support over 50 PTZ models
- Support 29 languages on Web interface
- ONVIF (Profile S) conformant
Note:
- It is required to apply patch files to all the supported software mentioned above except GV-VMS and GV-Center V2.
- GV-Video Server cannot work with microphones that acquire power from the unit. Use microphones that have external power supply.
- GV-VS2820 supports 1 external hard disk (2.5" or 3.5") with up to 6 TB capacities.
- It is not recommended to use the flash USB drive with GV-VS2820 because of its slow read and write speed.
- GV-VS2820 does not support coaxial cable connection with PTZ cameras.
- Product design and specifications are subject to change without notice.
Other Options:
- 4-Channel GV-VS2420 AHD to IP Encoder
- 4-Channel GV-VS2400 AHD to IP Encoder
- 8-Channel Geovision GV-VS2800 TVI to IP Encoder
- 16 Channel Geovision GV-VS21600 TVI to IP Video Encoder
SKU: 84-VS2820A-001U
Ordering Part No: 130-VS2820-AHD
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Downloads
Popular Search
Additional Information
4K Support: |
|
Accessory Type: |
Video Encoder
|
Alternative SKUs: |
130-VS2820-AHD
84-VS2820A-001U
VC-GV-VS2820
|
Channel Capacity: |
8 camera channels
|
Compression: |
H.264
|
Warranty: |
2-year Manufacturer Warranty
|
