Description

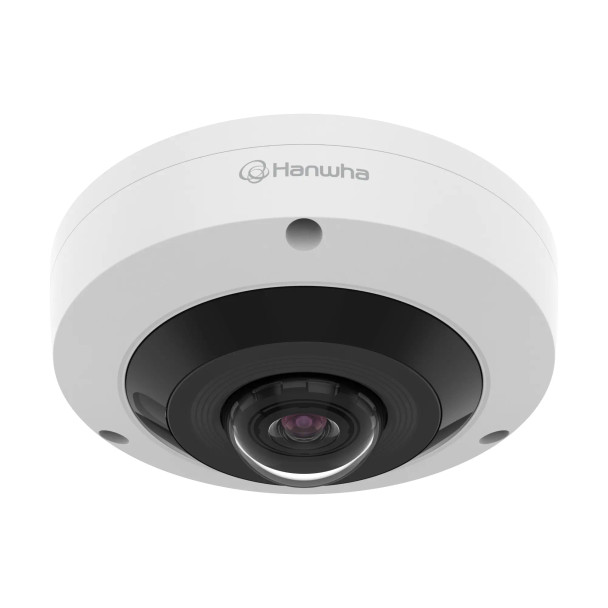

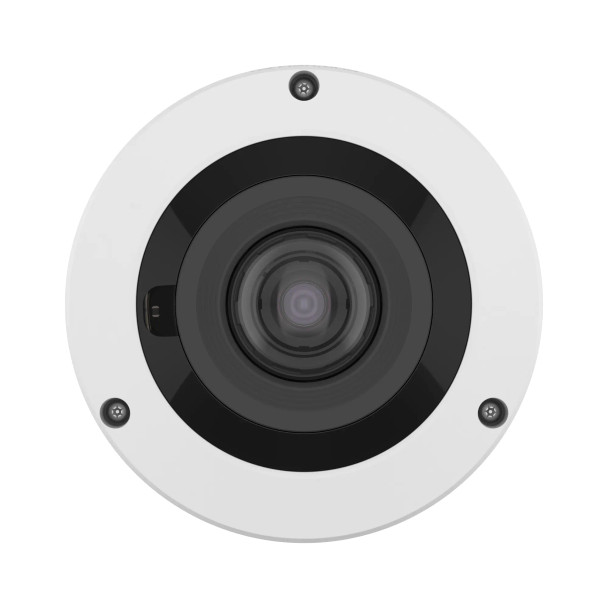

Hanwha Vision HCF-8011RV 5MP Outdoor Dome IP Security Camera with IR Wisenet HD
The HCF-8011RV from Hanwha Vision is a 5 megapixel IR wisenet HD+ outdoor fisheye dome camera with 1.16mm lens.
Key Features:
- 5MP (2560 x 1944, 20fps) resolution
- 0.5 Lux@F2.25 (Color), 0.005 Lux (B/W)
- 1.16mm fixed focal lens
- Day & Night (ICR), BLC, WDR, SSDR
- 10m(32.81ft) IR Viewable Length
- 300m(5C2V Coaxial Cable) Video Transmission Distance
- IP66, IK10
- 24v AC / 12v DC power
- Integration support model : SPE-1630 encoder, HRX-1635/835A/435/1634/434/435
Downloads
Datasheet
Hanwha-Vision-HCF-8011RV-Datasheet-A1
Additional Information
|
Aperture:
|
F2.25
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
IP66
IK10
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Day/Night:
|
|
|
Dimensions:
|
145.9 x 65.8 mm
|
|
Durability:
|
Dust Resistant
Vandal Resistant
Water Resistant
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
1.16mm
|
|
Material:
|
Aluminum
|
|
Protection Code:
|
IP66
IK10
|
|
Sensor Size:
|
1/2.9"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
