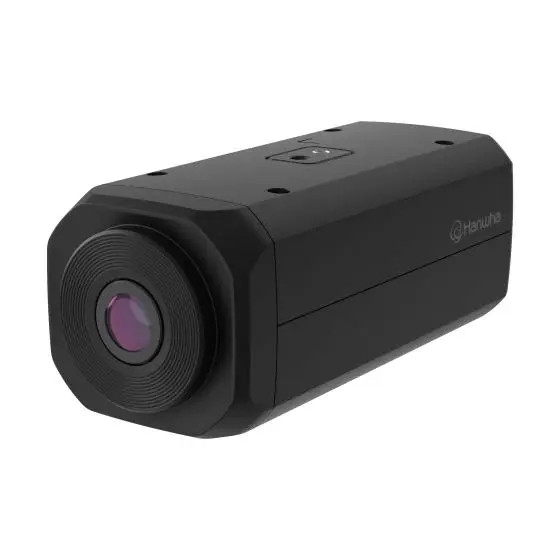

Hanwha Vision PNB-A9092 8MP Outdoor Box IP Security Camera with 15~50mm Lens

Hanwha Vision PNB-A9092 8MP Outdoor Box IP Security Camera with 15~50mm Lens

The Hanwha Vision PNB-A9092 is a high-performance 8MP AI box camera from the Wisenet P series, purpose-built for long-range surveillance applications. Driven by the Wisenet 9 SoC with dual NPU and 4GB of RAM, the PNB-A9092 delivers advanced AI-based analytics including object detection for persons, vehicles, faces, and license plates, as well as business intelligence features such as people counting, queue management, and heatmap generation. The large 1/1.2" CMOS sensor ensures exceptional image quality even in challenging low-light conditions.

The integrated 15–50mm (3.33x) motorized varifocal lens makes the PNB-A9092 ideal for perimeter security, parking lots, and wide open spaces requiring long detection distances — reaching up to 730m in Tele detect mode per DORI standards. Dual SD card slots support up to 2TB of on-camera edge storage for redundant recording, and the built-in microphone enables audio monitoring directly from the camera. Power redundancy via PoE+ and 12VDC failover ensures continuous operation.

The camera's cybersecurity design includes secure boot, encrypted firmware, IEEE 802.1X network authentication, and a secure element certified to FIPS 140-3 level 3 and CC EAL6+. NDAA compliance supports deployment in government and sensitive enterprise environments.

Key Features:

• 8MP (4K) resolution with 1/1.2" CMOS sensor; captures fine detail across long distances for accurate identification of people and vehicles.
• 15–50mm motorized varifocal lens with 3.33x optical zoom; optimized for perimeter and long-range surveillance coverage.
• AI-powered analytics (object detection, IVA, slip & fall, face mask, crowd counting, heatmap); reduces false alarms and enables proactive, event-driven security responses.
• DORI detect range up to 730m (Tele); enables early threat detection at extreme distances.
• extremeWDR at 120dB; delivers clear imaging in high-contrast scenes such as building entrances and outdoor areas with mixed lighting.
• Dual SD card slots supporting up to 2TB total edge storage; ensures local recording continuity even when network connectivity is interrupted.
• PoE+ and 12VDC dual power input with failover; guarantees continuous operation even if one power source fails.
• NDAA compliant with secure element (FIPS 140-3 level 3, CC EAL6+); meets stringent government and enterprise cybersecurity requirements.
• Built-in microphone with line audio output; enables comprehensive audio-video surveillance from a single device.
