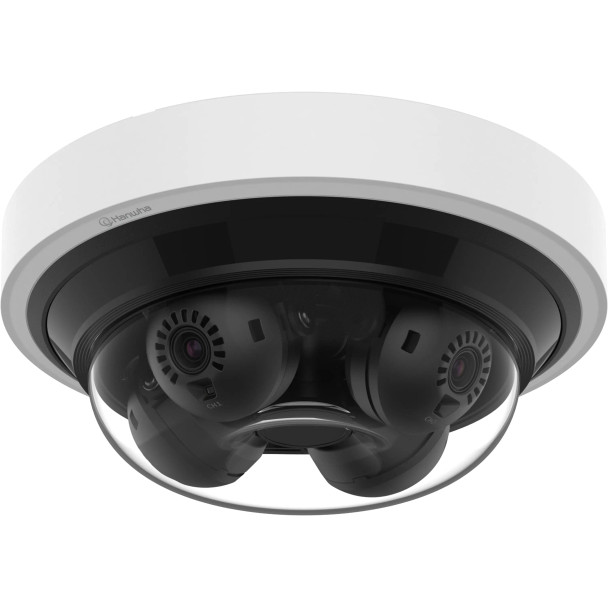

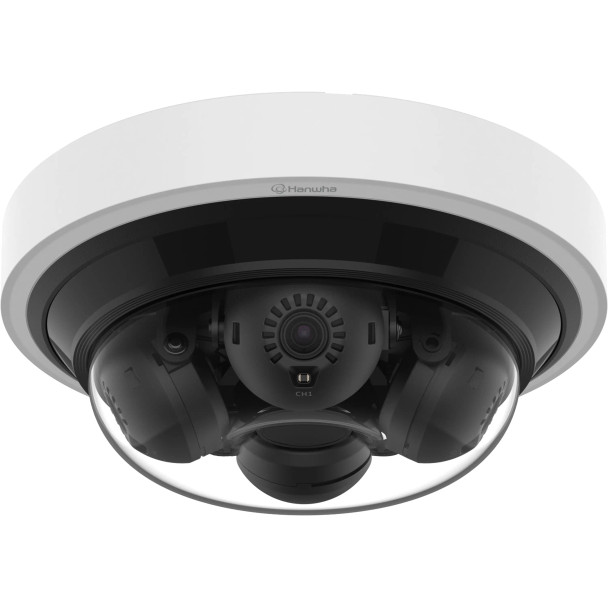

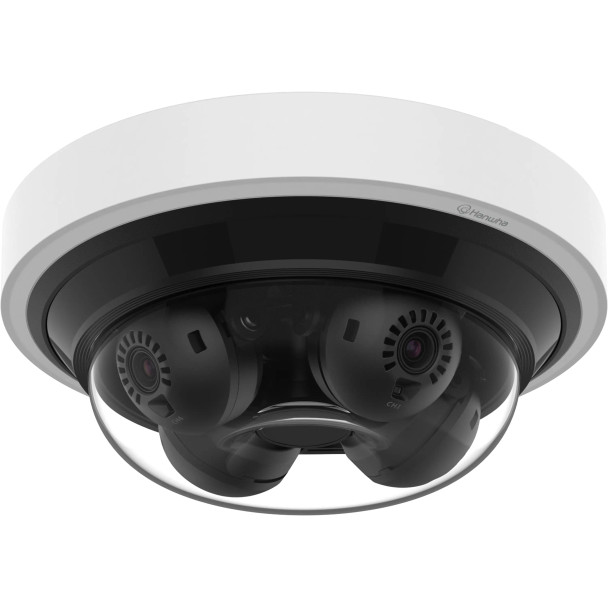

Hanwha Vision PNM-C16013RVQ 4x4MP Outdoor Dome IP Security Camera with AI Technology and Multi Sensor
Securely monitor your surroundings with the white PNM-C16013RVQ Multi-Sensor Outdoor Multidirectional Network Mini Dome Camera from Hanwha Techwin. This unit uses four 1/2.8" CMOS image sensors to capture 2592 x 1520 resolution video per sensor at 15 fps for a combined resolution of 16MP. IR LEDs provide up to 66' of night vision. The camera's four 3.19mm fixed lenses each deliver a 97° horizontal field of view. Two onboard memory slots each accept microSD/SDHC/SDXC cards up to 512GB for a total storage capacity of 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Key Features:
- 4CH AI based Analytics events : classified object (Person/Face/Vehicle/License plate)
- AI based loitering detection and line crossing detection ·
- AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ ·
- IR viewable length 20m (65.6 ft) · Supports hallway mode · 15fps@4MP · 3.19mm fixed lens · Next level cybersecurity (TPM 2.0, FIPS 140-2 certified) ·
- Reinforced durability (IP66, NEMA4X, IK09)
Downloads
Datasheet
Hanwha-Vision-PNM-C16013RVQ-Datasheet-A1
Additional Information
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
IP66
NEMA 4X
IK09
|
|
Color:
|
White
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
200 x 80 mm
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
3.19mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
RAM:
|
4GB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
