Description

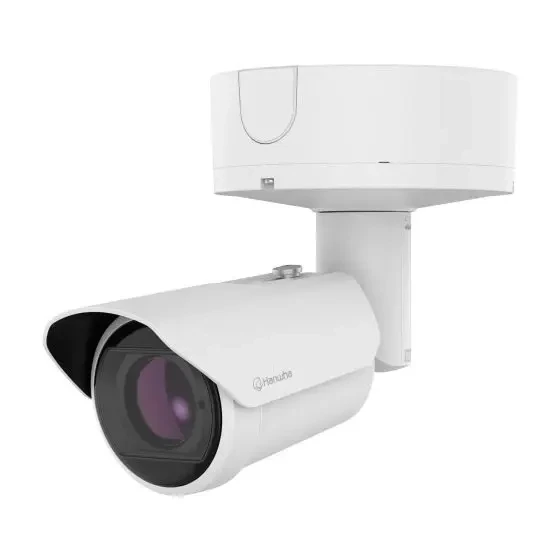

Hanwha Vision PNO-A9092R 8MP Outdoor Bullet IP Security Camera with 15~50mm Lens and Built-In IR
The Hanwha Vision PNO-A9092R is an 8MP (4K) AI-powered long-range bullet camera built for demanding outdoor surveillance applications. Equipped with a 1/1.2" CMOS sensor and a 15~50mm (3.33x) motorized varifocal lens, it delivers exceptional detail at extended ranges, with WiseIR illumination reaching up to 120m (393.7ft). The camera achieves 0.015 Lux in color and 0.0015 Lux in B/W, making it highly effective in low-light environments.
Powered by the Wisenet 9 SoC with Dual NPU, the PNO-A9092R brings advanced AI analytics including object detection for persons, faces, vehicles, and license plates, along with business intelligence tools such as people counting, queue management, and heatmap analysis. The camera features extremeWDR (120dB), WiseNR II noise reduction, and AI-based image enhancement. It is rated IP66/IP67, NEMA4X, and IK10, and supports dual SD card slots for up to 2TB of edge storage. Dual-power input (PoE+ or 12VDC) with failover redundancy ensures uninterrupted operation.
The PNO-A9092R is NDAA compliant and supports ONVIF S/G/T/M profiles, making it compatible with a wide range of VMS platforms.
Key Features:
- 8MP (4K) 1/1.2" CMOS sensor; delivers high-resolution imagery for face and license plate identification at distance.
- 15~50mm (3.33x) motorized varifocal lens; allows remote focus and zoom adjustment without physical access to the camera.
- WiseIR up to 120m (393.7ft); provides reliable nighttime surveillance over long distances.
- extremeWDR 120dB; balances challenging lighting scenes such as backlighting and mixed indoor/outdoor environments.
- AI analytics (object detection, IVA, Slip&Fall, social distancing); reduces false alarms and enables intelligent event response.
- Dual SD card slots (up to 2TB total); provides onboard redundant edge recording as backup to NVR.
- IP66/IP67, NEMA4X, IK10 rated; ensures reliable operation in harsh outdoor conditions.
- PoE+ and 12VDC dual power with failover; maintains continuous operation even if one power source fails.
- NDAA compliant; approved for use in sensitive government and commercial deployments.
Downloads
Additional Information
|
Aperture:
|
F1.67
|
|
Camera Style:
|
Bullet
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
ø3.68x11.75in
|
|
Lens Size:
|
15~50mm
|
|
Lens Type:
|
Motorized Varifocal Lens
|
|
Minimum Illumination (B/W):
|
0.0015 Lux
|
|
Minimum Illumination (Color):
|
0.015 Lux
|
|
Night Vision Range (ft):
|
393
|
|
Noise Reduction:
|
WiseNR Ⅱ
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Protection Code:
|
IP66
IP67
IK10
NEMA 4X
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/1.2"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 90% RH (non-condensing)
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
