Description

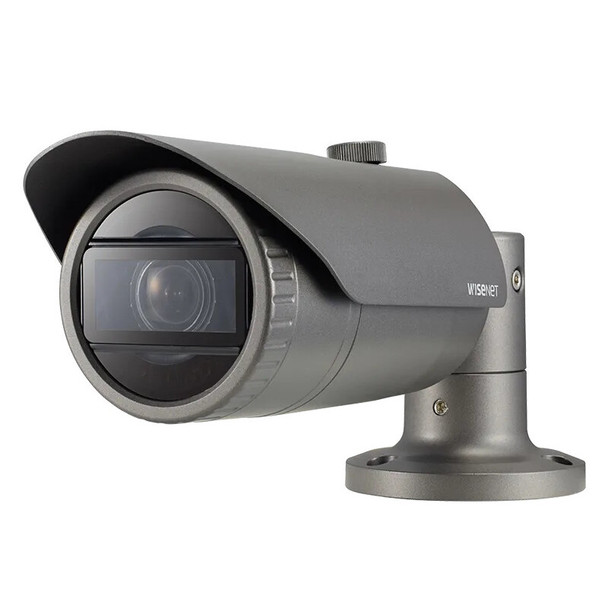

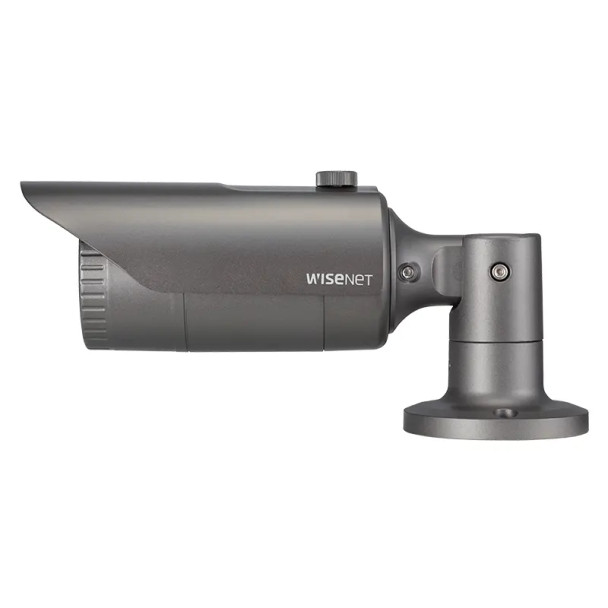

Hanwha Vision QNO-7080RB 4MP IR Outdoor Bullet IP Security Camera with 2.8~12mm Motorized Lens, Black
The QNO-7080R from Hanwha's Q Series affordable network camera line is a 4MP bullet network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm motorized varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Key Features:
- Max. 4MP resolution
- Built-in 2.8~12mm Motorized Lens
- 1/3" CMOS
- IR distance 100ft
- Max. 20fps@4M, Max.30fps@2M all resolutions
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Motion detection, Tampering, Defocus detection
- Micro SD (128GB) memory slot,
- PoE / 12V DC
- Hallway view support
- LDC support (Lens Distortion Correction)
- ONVIF
- Weatherproof and Vandal Proof (IP66 and IK10)
Downloads
Datasheet
Hanwha-Vision-QNO-7080RB-Datasheet-A1
User Manual
Hanwha-Vision-QNO-7080RB-User-Manual-A1
Firmware
qnd7080r_series_4.00_200616.zip
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Camera Style:
|
Bullet
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
109.7
26
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
128 GB
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Samsung Hanwha Wisenet Q Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
