Description

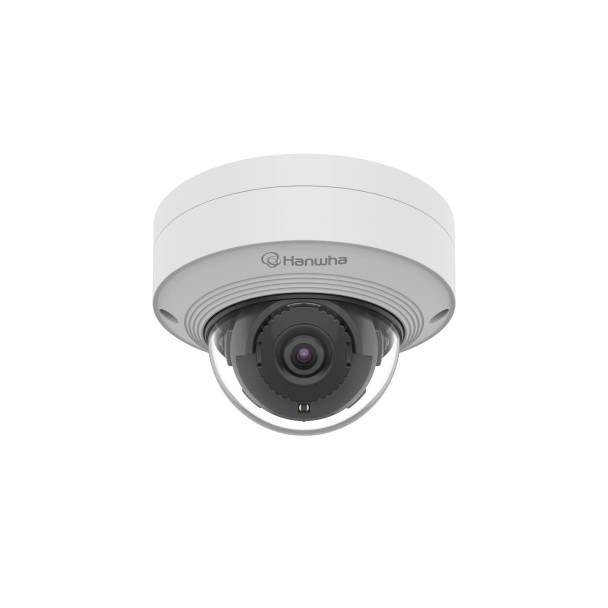

Hanwha Vision QNV-C8012 5MP Outdoor Dome IP Security Camera
QNV-C8012 provides a wider angle of view than the previous Q series models with a 2.8mm lens, allowing users to monitor a wider area.
Key Features:
- Max. 5MP resolution
- Max. 30fps
- Color: 0.05Lux(F2.0, 1/30sec), BW: 0.005Lux(F2.0, 1/30sec, 30IRE)
- Focal length: 2.4mm fixed focal
- H.265, H.264, MJPEG codec supported
- Multiple streaming up to 5 profiles
- Day & Night (ICR), WDR (120dB)
- Micro SD/SDHC/SDXC 1 slot 256GB
- IP66, IK10, NEMA4X
Downloads
Datasheet
Hanwha-Vision-QNV-C8012-Datasheet-A1
Additional Information
|
Aperture:
|
F2.0
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
110 x 77 mm
|
|
Durability:
|
Dust Resistant
Vandal Resistant
Water Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
|
RAM:
|
2GB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
