Description

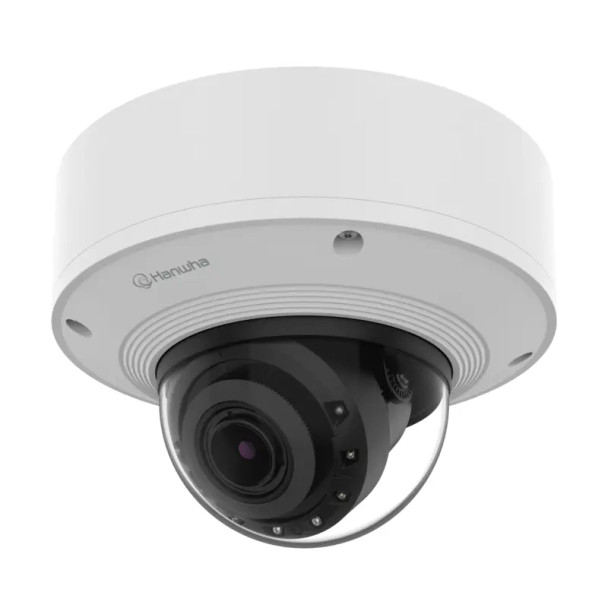

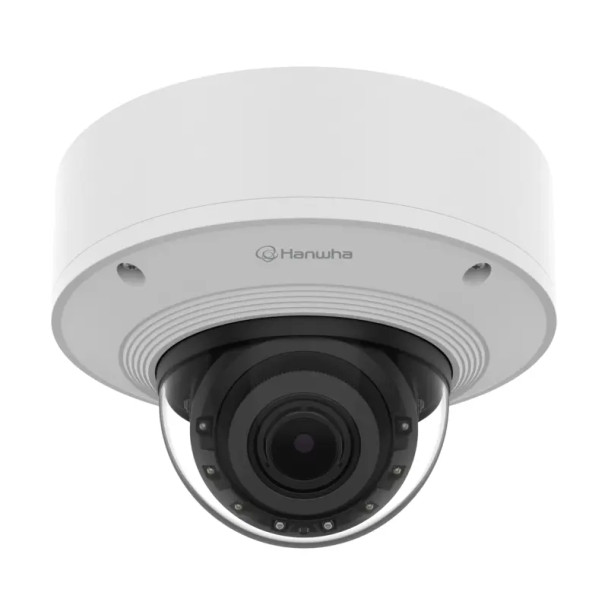

Hanwha Vision SolidEDGE PNV-A6081R-E1T 2MP IR Outdoor Vandal Dome Camera with 1TB SolidEDGE WAVE Recording Solution
Key Features:
- NDAA, FCC & UL compliant
- PNV-A6081R-E1T (1TB) and PNV-A6081R-E2T (2TB) embedded Solid State Drive (SSD) with WAVE VMS pre-loaded
- Includes 1-channel WAVE Professional camera license
- A complete server-less VMS solution
- Capable of recording up to 5 additional cameras for a total recording solution, up to 6 total cameras (32Mbps total recording throughput)
- 2MP resolution up to 120fps
- WiseIR 131.23ft
- WDR (120dB)
- 4.38~9.33mm(2.13x) motorized varifocal lens with Simple focus for easy remote adjustments
- Triple codec H.265/H.264/MJPEG
- WiseStream II compression technology to save bandwidth & storage
- USB, analog video output ports for easy installation
- True D/N
- Hard-coated dome bubble
- PoE+(IEEE802.3at type 2, Class4), 12VDC, Power redundancy failover
- IP66/IP67/IP6K9K, NEMA4X, IK10
- TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
- 19.1mm(3/4")(M25) conduit hole, single, double, 4" octagon, 4" square gangbox compatibility
Downloads
Quick Start Guide
Hanwha-Vision-PNV-A6081R-E1T-Quick-Start-Guide-A1
User Manual
Hanwha-Vision-PNV-A6081R-E1T-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.3
F2.15
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
G.711
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
VCCI
CE
RCM
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile T
ONVIF Profile M
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
98.43
311.82
|
|
Dimensions:
|
180 x 130 mm (7.09 x 5.12 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
124
51
|
|
Field of View (Horizontal):
|
104
44
|
|
Field of View (Vertical):
|
55
24
|
|
Focus:
|
Simple Focus
|
|
Gain Control:
|
Low
Middle
High
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
9.84
31.18
|
|
Image Settings:
|
Flip
Mirror
Hallway View
|
|
Internal Storage:
|
1 TB
|
|
Iris:
|
P-iris
|
|
Languages:
|
English
Korean
Chinese
French
Italian
Spanish
German
Japanese
Russian
Portuguese
Czech
Polish
Turkish
Dutch
Greek
Hungarian
|
|
Lens Size:
|
4.38~9.33mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Main Stream:
|
1080P
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
19.2 Watts
|
|
Max. FPS and Resolution:
|
120fps at 1080p
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.008Lux at F1.3 1/30sec 30IRE
Color: 0.016Lux(F1.3
1/60sec
30IRE)
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
WiseNR
SSNR V
|
|
Observe (ft):
|
39.37
124.73
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Privacy Mask:
|
6 area
|
|
Protection Code:
|
IP66
IP67
IP69K
NEMA 4X
IK10
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
19.69
62.36
|
|
Resolution:
|
2MP
|
|
Security:
|
IP address filtering
Digest authentication
|
|
Sensor Size:
|
1/2"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
