Description

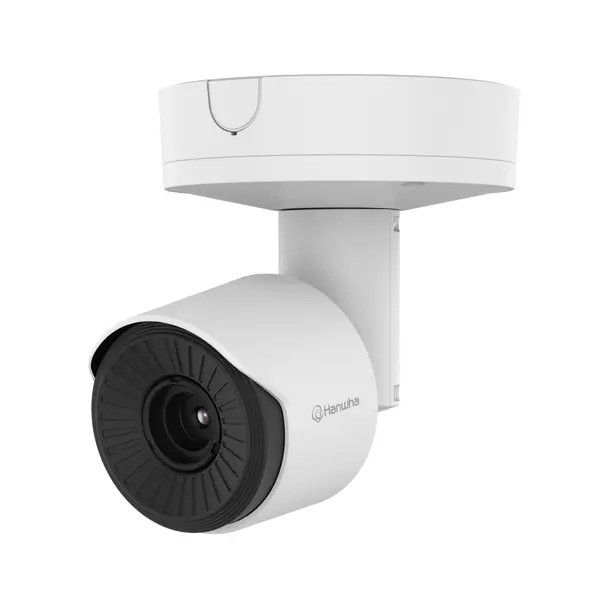

Hanwha Vision TNO-C3022TRA QVGA Radiometric AI Thermal Outdoor Bullet IP Security Camera with 6.6mm Lens
The Hanwha Vision TNO-C3022TRA is a high-performance QVGA radiometric AI thermal camera designed for precise temperature monitoring and intelligent object detection. This advanced thermal camera features a 384x288 resolution uncooled micro bolometer sensor with 17μm pixel size and NETD <30mK for exceptional thermal sensitivity. The camera operates across a wide temperature monitoring range from -40°C to 550°C (-40°F to 1,022°F), making it ideal for industrial monitoring, fire detection, and critical infrastructure surveillance.
Equipped with a 6.6mm fixed thermal lens providing 60° horizontal field of view, this camera delivers focused thermal imaging for medium to long-range applications. Advanced AI technology enables intelligent object classification for persons and vehicles, along with comprehensive analytics including WiseMD, virtual line detection, and virtual area monitoring. The compact design (ø93.8x233.5mm, 1.7kg) ensures easy installation while maintaining robust IP66 protection for outdoor environments. The camera supports radiometric temperature measurement with up to 10 polygonal ROI zones.
Key Features:
- QVGA resolution (384x288) uncooled micro bolometer sensor with 17μm pixel size
- Wide temperature monitoring range: -40°C to 550°C (-40°F to 1,022°F)
- AI-based object classification for persons and vehicles
- High thermal sensitivity with NETD <30mK for accurate temperature detection
- 6.6mm fixed thermal lens with 60° horizontal field of view
- Radiometric temperature measurement with 10 polygonal ROI zones
- IP66 weatherproof rating for outdoor installations
- Compact design: ø93.8x233.5mm, 1.7kg weight
- H.265/H.264/MJPEG compression with maximum 8fps
- Advanced analytics: WiseMD, virtual line/area detection, tampering detection
- Multiple color palettes including hybrid visualization modes
Downloads
Additional Information
|
Camera Style:
|
Bullet
|
|
Compression:
|
H.265
|
|
Dimensions:
|
ø3.69x9.19in
|
|
Environmental:
|
Outdoor
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK10
IP66
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Type:
|
Thermal Sensor
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-50 °C to +60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Thermal Lens Size:
|
6.6mm
|
|
Thermal Resolution:
|
384 x 288
|
