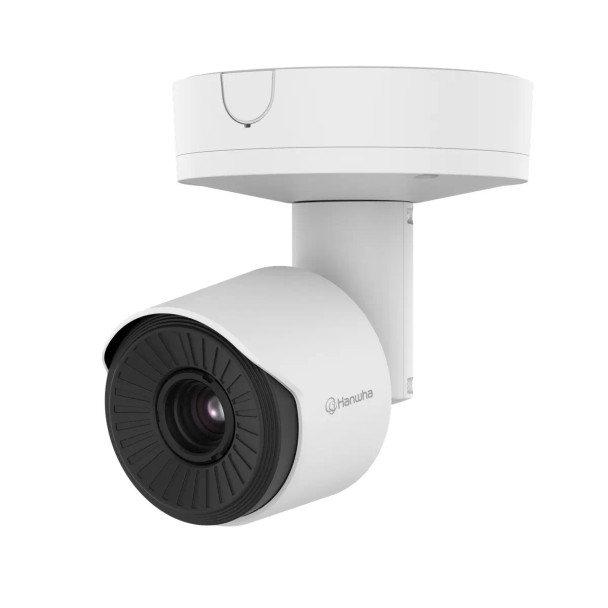

Hanwha Vision TNO-C3052T 384x288 Thermal Outdoor Bullet IP Security Camera with 19mm Lens, 8fps

Hanwha Vision TNO-C3052T 384x288 Thermal Outdoor Bullet IP Security Camera with 19mm Lens, 8fps

The Hanwha Vision TNO-C3052T represents cutting-edge thermal imaging technology with QVGA (384x288) resolution using an advanced 17μm pixel pitch uncooled microbolometer sensor. This professional-grade thermal camera delivers exceptional long-range detection capabilities with superior thermal sensitivity of ≤20mK@25°C, enabling reliable heat signature monitoring in complete darkness and challenging weather conditions. The 19mm fixed-focal athermalized lens with F1.0 aperture provides a narrow 19.3° x 14.6° field of view optimized for tele-range surveillance applications, making it ideal for monitoring extended perimeters, critical infrastructure, and border security installations.

Engineered with advanced AI-powered analytics, the camera brings intelligent object classification capable of distinguishing between persons and vehicles at extended distances. With DORI performance enabling human detection up to 678 meters (2,222 feet), this thermal camera excels in applications requiring long-range threat identification. The radiometric capabilities support hybrid palettes and ROI condition monitoring, allowing precise temperature measurement and abnormal heat pattern detection for industrial safety applications and equipment monitoring.

Key Features:

• 384x288 QVGA Resolution with 17μm pixel pitch uncooled microbolometer delivers enhanced thermal imaging detail; detects humans up to 678m (2,222ft) and provides superior heat signature clarity for long-range perimeter security and threat detection
• 19mm Fixed-Focal Athermalized Lens with F1.0 aperture provides narrow 19.3° horizontal field of view; optimized for tele-range surveillance with 0.895 mRad IFOV enabling precise long-distance target identification and tracking
• Exceptional Thermal Sensitivity ≤20mK@25°C detects minute temperature variations for early threat detection; superior performance enables reliable monitoring in challenging conditions with advanced noise reduction and self-calibration capabilities
• AI-Based Object Classification intelligently distinguishes between persons and vehicles; features advanced analytics including intrusion detection, line crossing, loitering detection, and motion-based event triggers for automated threat assessment
• Radiometric Analytics with hybrid palettes and ROI condition monitoring enables precise temperature measurement; supports customizable alerts for temperature increases or decreases within defined regions for industrial safety and equipment monitoring
• FIPS 140-3 Level 3 & CC EAL6+ Certified Secure Element provides hardware-based cryptographic protection; includes secure boot, signed firmware, and encrypted storage meeting stringent government and military security requirements
• Extreme Environmental Durability with IP66/67, IK10, NEMA 4X, NEMA-TS2, and MIL-STD-810H ratings; operates reliably from -40°C to 60°C (-40°F to 140°F) in harsh outdoor environments with ruggedized aluminum construction
• ONVIF Profile S, G, T, M compliant with H.265/H.264 compression; seamless integration with existing VMS platforms and enterprise security systems while optimizing bandwidth efficiency through WiseStream technology
