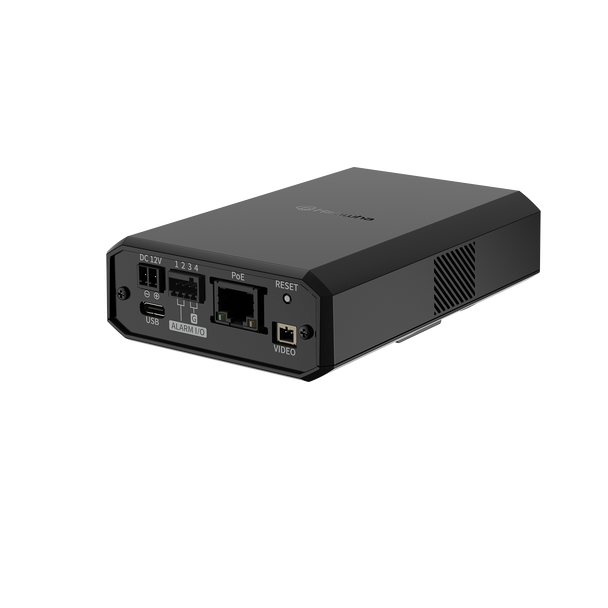

Hanwha Vision XNB-A8004B 5MP Indoor Box IP Security Camera with No Lens

Hanwha Vision XNB-A8004B 5MP Indoor Box IP Security Camera with No Lens

The Hanwha Vision XNB-A8004B is a 5MP AI-powered remote-head camera body built on the Wisenet 9 SoC with Dual NPU, designed for flexible integration with interchangeable Hanwha Vision SLA-F and SLA-T series lens modules — lens module is sold separately and is not included. This 1-channel remote-head design separates the camera electronics from the lens module, enabling discreet deployment in constrained spaces, machinery, vehicles, or architectural installations where the camera body and lens must be placed at different locations or distances. The black aluminum and polycarbonate body measures just 131.1 x 33.5 x 86mm, making it one of the most compact 5MP AI camera main units available. A legacy CVBS analog output is included for installation preview without IP infrastructure, and a USB Type-C port enables direct live view during commissioning.

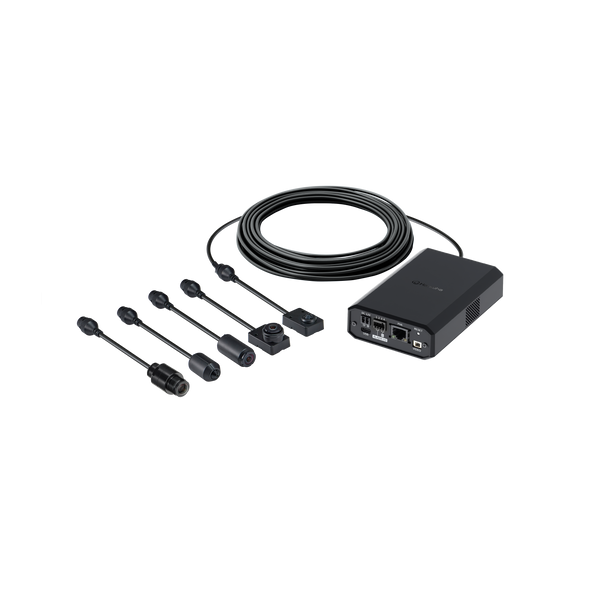

Compatible lens modules (sold separately) include SLA-F1080FA, SLA-F2480A, SLA-F4780A, SLA-F2480VA, SLA-F4780VA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480HA, SLA-F2480WA, SLA-F2480WDA, SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-T2480WA, SLA-T2480WDA, SLA-T4615VA, and SLA-T2480HA — covering focal lengths from 1.6mm fisheye to 4.72mm standard, with horizontal fields of view ranging from 70° to 187°. The Dual NPU Wisenet 9 engine enables comprehensive AI analytics at the edge without additional licensing. Object detection classifies persons, faces, vehicles, and license plates with granular attribute extraction. IVA scenarios include tailgating detection, virtual line crossing, area intrusion, loitering, slip and fall, and social distancing monitoring. Business intelligence tools add people and vehicle counting, queue management, heatmap, and crowd counting.

The XNB-A8004B supports PoE (IEEE 802.3af) or 12VDC power with failover redundancy, operates from -10°C to +50°C (14°F to 122°F), and delivers 5MP at 30 fps with H.265/H.264/MJPEG compression and up to 5 simultaneous streams. FIPS 140-3 Level 3 / CC EAL6+ certified secure element provides hardware-rooted cybersecurity. MicroSD edge storage supports up to 1TB.

Key Features:

• No Lens Included; compatible with over 20 Hanwha Vision SLA-F and SLA-T series lens modules covering focal lengths from 1.6mm fisheye to 4.72mm standard — select the appropriate lens for your installation before ordering.
• 5MP Wisenet 9 AI Remote-head Camera Body; separates camera electronics from lens module for discreet installation in constrained spaces, machinery, and architectural environments.
• Dual NPU AI Engine; enables simultaneous object detection, IVA analytics, and business intelligence (people counting, heatmap, queue management) without additional licensing.
• CVBS Legacy Analog Output; enables installation preview on existing analog monitors without IP infrastructure during commissioning.
• Power Redundancy Failover (PoE + 12VDC); ensures continuous operation if one power source fails, critical for mission-critical indoor installations.
• Dynamic Privacy Masking; automatically masks moving subjects while recording background for compliance-sensitive and regulated environments.
• FIPS 140-3 Level 3 / CC EAL6+ Secure Element; hardware-rooted cybersecurity with AES-256 encrypted SD storage, secure boot, and signed firmware.

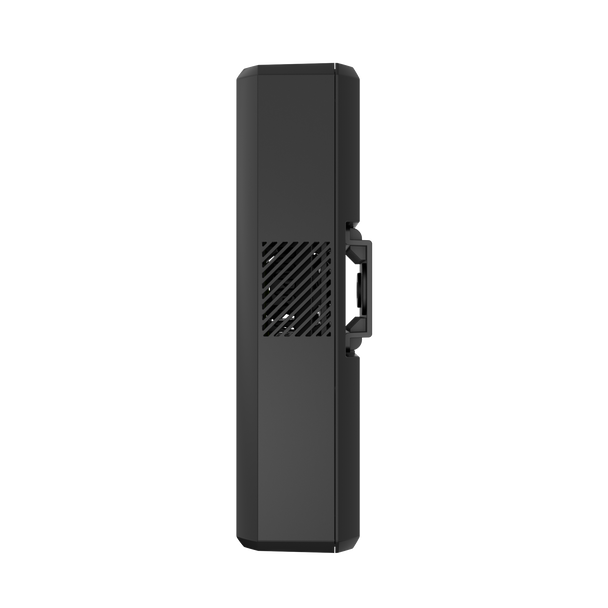

• Compact 5.16 x 1.32 x 3.39 in Body; slim form factor enables installation in locations inaccessible to standard dome or bullet cameras.
