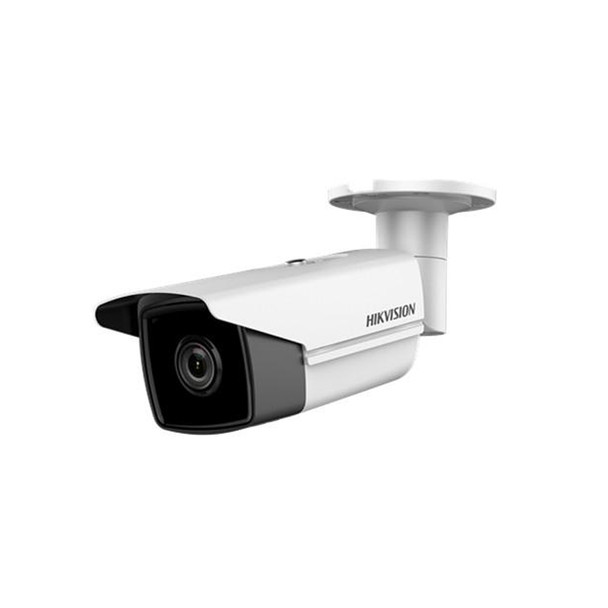

Hikvision DS-2CD2T35FWD-I5-4mm 3MP H265+ Outdoor Bullet IP Security Camera
EXIR 2.0 Technology: With the growing popularity of all-weather monitoring in the surveillance industry, IR LED requirements are getting more demanding. Anticipating a need for infrared cameras, Hikvision took the lead in developing EXIR (EXtended InfraRed) cameras. After continual refinement and a series of technological improvements, Hikvision introduced the next generation of infrared technology, EXIR 2.0.
This white paper provides an in-depth explanation of the technological advantages of EXIR 2.0 technology. In addition to the previous generation's advantages over DIP IRs EXIR 2.0 offers new advantages, which include:
- Improved heat disspiation
- Lifespan improvement by as much as 20,000 hours
- Elimination of a secondary lens for infrared light focus
- Smaller form factor
Key Features:
- 3MP
- Max. 2048 x 1536@30fps
- 4 mm fixed lens
- Ultra-low light
- H.265, H.265+, H.264+, H.264
- Horizontal field of view: 78.7°
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- DC12V & PoE (802.3af)
- IR range: 164ft/ 50 m, 262ft / 80m, optional
- Support on-board storage, up to 128 GB
- IP67 Weatherproof
- ONVIF
- Camera: Φ105 x 299.7 mm (Φ4.13″ x 11.80″)
Package: 386 x 156 x 155 mm (15.2″ x 6.14″ x 6.1″)
Replacement of:
DS-2CD2T32-I5 4MM
Downloads
Datasheet
Hikvision-DS-2CD2T35FWD-I5-s-A1.pdf
User Manual
Hikvision-DS-2CD2T35FWD-I5-u-A1.pdf
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max. FPS and Resolution:
|
30fps at 2048 x 1536
|
|
Max. Storage Capacity:
|
128 GB
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
3MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
