Description

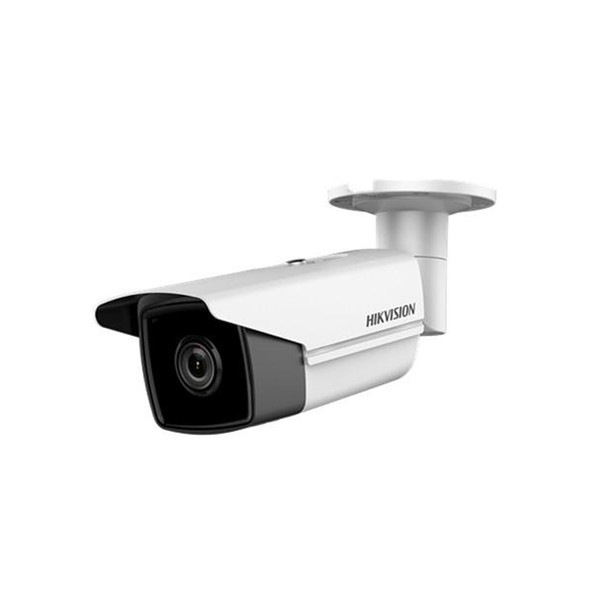

Hikvision DS-2CD2T85FWD-I5-2.8mm 8MP 4K Fixed H265+ Outdoor Bullet IP Security Camera
EXIR 2.0 Technology: With the growing popularity of all-weather monitoring in the surveillance industry, IR LED requirements are getting more demanding. Anticipating a need for infrared cameras, Hikvision took the lead in developing EXIR (EXtended InfraRed) cameras. After continual refinement and a series of technological improvements, Hikvision introduced the next generation of infrared technology, EXIR 2.0.
This white paper provides an in-depth explanation of the technological advantages of EXIR 2.0 technology. In addition to the previous generation's advantages over DIP IRs EXIR 2.0 offers new advantages, which include:
- Improved heat disspiation
- Lifespan improvement by as much as 20,000 hours
- Elimination of a secondary lens for infrared light focus
- Smaller form factor
Key Features:
- 8MP
- Max. 3840 x 2160@20fps
- ONVIF
- 2.8 mm fixed lens
- H.265, H.265+, H.264+, H.264
- Horizontal field of view: 102°
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- DC12V & PoE (802.3af)
- IR range: 164ft/ 50 m, 262ft / 80m, optional
- Support on-board storage, up to 128 GB
- IP67 Weatherproof
- Camera: Φ104.8 x 299.7 mm (Φ4.13″ x 11.8″)
- Package: 386 x 156 x 155 mm (15.2″ x 6.14″ x 6.1″)
Downloads
Datasheet
Hikvision-DS-2CD2T85FWD-I5-s-A1.pdf
Datasheet
Hikvision-DS-2CD2T85FWD-I5-q-A1.pdf
User Manual
Hikvision-DS-2CD2T85FWD-I5-u-A1.pdf
Additional Information
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max. FPS and Resolution:
|
20fps at 4K (3840 x 2160)
|
|
Max. Storage Capacity:
|
128 GB
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.5"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
