Description

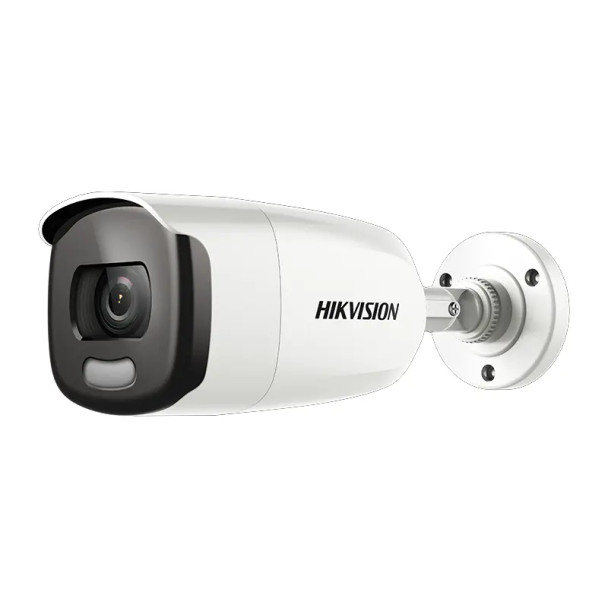

Hikvision DS-2CE12HFT-F TurboHD ColorVu 5MP Outdoor White-Light Bullet Analog Security Camera, 3.6mm Fixed Lens, White
Hikvision’s DS-2CE12HFT-Fxx ColorVu Fixed Bullet Outdoor Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.
The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.
The 2.8 mm (-F28 model) and 3.6 mm (-F model) fixed lenses are optimized for viewing angles that fit any situation. 130 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Key Features:
- 24/7 Full Time Color
- 5 MP High Performance CMOS
- Up to 2560 x 1944 Resolution
- 3.6 mm Fixed Lens (-F Model)
- 3D DNR, OSD Menu
- Up to 130 ft (40 m) White Light Range
- 130 dB True WDR
- Multiprotocol Output: TVI/AHD/CVI/CVBS
- Up-the-Coax (HIKVISION-C)
- IP67 Protection
Downloads
User Manual
Hikvision-DS-2CE12HFT-F-User-Manual-A1
Datasheet
Hikvision-DS-2CE12HFT-F-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
HX-BL12HFTF3
DS-2CE12HFT-F(3.6MM)
DS-2CE12HFT-F 3.6MM
|
|
Aperture:
|
F1.0
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
cULus
FCC
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
82.6 x 77.1 x 215.7 mm (3.25 x 3.04 x 8.49 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
139.8
|
|
Field of View (Vertical):
|
72
|
|
HD CCTV Type:
|
HD-TVI
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Mirror
Privacy Mask
Saturation
|
|
Languages:
|
English
|
|
Lens Mount:
|
M16
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
4.9 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2560 x 1944
|
|
Minimum Illumination (B/W):
|
0 Lux with white light
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Night Vision Range (ft):
|
130
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
|
|
Privacy Mask:
|
4 area
|
|
Product Series:
|
Hikvision Turbo HD Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/50000s
|
|
Specialized Camera Feature:
|
Audible Warning
Strobe Light
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
