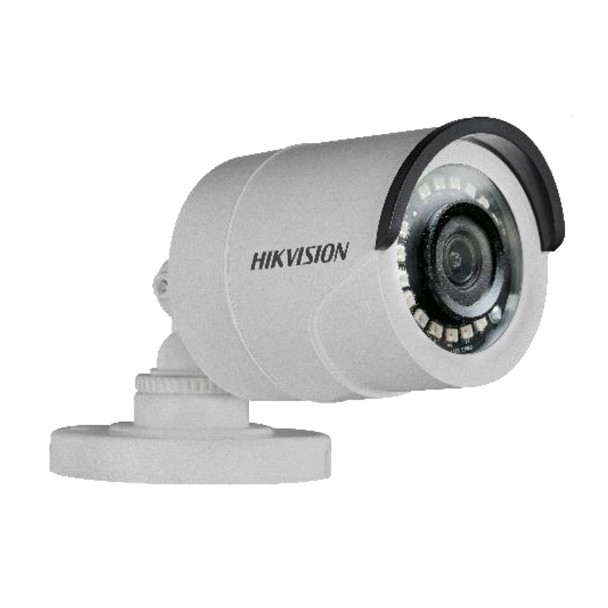

Hikvision DS-2CE16D3T-I3F 2.8MM 2MP IR Outdoor Bullet HD Analog Security Camera

Name: Hikvision DS-2CE16D3T-I3F 2.8MM 2MP IR Outdoor Bullet HD Analog Security Camera
Brand: Hikvision
SKU: DS-2CE16D3T-I3F 2.8MM
Price: 66.00 USD
Availability: InStock

Brand: Hikvision

Part Number: DS-2CE16D3T-I3F 2.8MM

Write a Review

$66.00

✅ Help me pick a security camera

Technical Support

3 Year Warranty

Key Features:

Field of View (Horizontal) : 106°Field of View
Lens Type : Fixed Lens
Lens Size : 2.8mm Lens
Environmental : Outdoor

Description
Specifications
Compatible products
Additional Information
Q&A

Description

Hikvision DS-2CE16D3T-I3F 2.8MM 2MP IR Outdoor Bullet HD Analog Security Camera

Key Features:

2 MP high-performance CMOS
Ultra low light
1920 × 1080 resolution
2.8 mm fixed lens
Smart IR, up to 30 m IR distance
OSD menu, 3D DNR,
120 dB true WDR, day/night switch
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
Weatherproof IP67
Up the coax (HIKVISION-C)

Optional Accessories:

DS-1280ZJ-XS Junction Box

Replacement of: DS-2CE16D8T-IT 2.8MM

Downloads

Datasheet Hikvision-DS-2CE16D3T-I3F-2.8MM-Datasheet-A1

Popular Search

Hikvision HD CCTV Security Cameras

Hikvision Security Cameras

Specifications

Camera
Image Sensor:		2.0 megapixel progressive scan CMOS
Signal System:		PAL/NTSC
Effective Pixels:		1920(H)*1080(V)
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Day& Night:		IR cut filter
Video Frame Rate:		PAL: 1080p@25fps NTSC: 1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
Up the Coax:		Support

Menu
Backlight Compensation:		Yes
D/N Mode:		Color/BW/SMART
AGC:		Low/middle/high
Digital WDR:		Yes
Language:		English/Chinese
Function:		Brightness, Sharpness, DNR, Mirror, Smart IR

General
Material:		Metal
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption:		Max. 4.7 W
Weather Proof:		IP67
IR Range:		Up to 30m

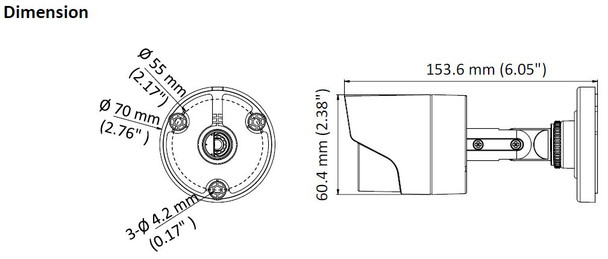

Dimension:		153.6 mm × 60.4 mm (6.05" × 2.38")
Weight:		Approx. 303 g (0.67 lb.)

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:	Bullet
Environmental:	Outdoor
Field of View (Horizontal):	106
Lens Size:	2.8mm
Lens Type:	Fixed Lens
NDAA Compliance:
Night Vision Range (ft):	100
Resolution:	2MP
Technology:	HD CCTV
Warranty:	3-year Manufacturer Warranty
Wide Dynamic Range (WDR):	True WDR 120dB
