Description

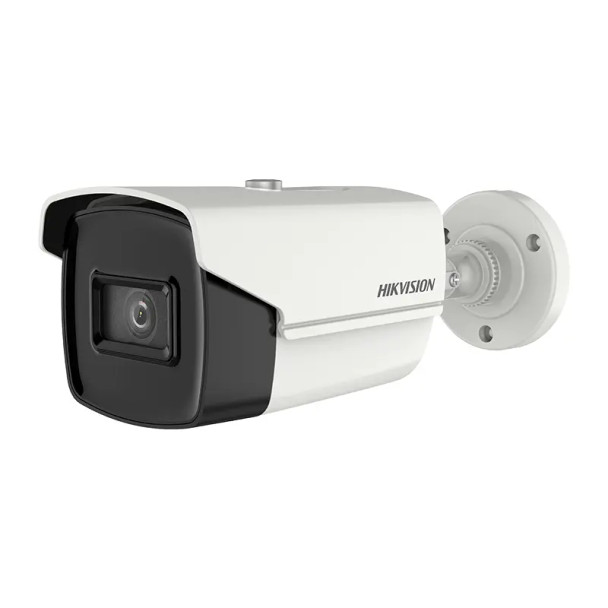

Hikvision DS-2CE16D3T-IT3F 6MM 2MP Outdoor Ultra-Low Light Bullet HD Analog Security Camera, 6mm Fixed Lens
The Hikvision DS-2CE16D3T-IT3F 2 MP Outdoor Ultra-Low Light Bullet Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
Key Features:
- Minimum Illumination: Color: 0.005 lux @ (f/1.2, AGC on), 0 lux with IR
- Up to 1080p Resolution
- 6 mm Fixed Focal Lens
- 1080p @ 30 fps
- EXIR 2.0 up to 165ft (50 m) IR Range
- 12VDC ± 25%
Downloads
User Manual
Hikvision-DS-2CE16D3T-IT3F-6MM-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
HX-BL1D3I36F
|
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
81.9 x 86.7 x 217.9 mm (3.22 x 3.41 x 8.58 in))
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
51
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Sharpness
Mirror
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
5.6 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.2 AGC on
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
Hikvision Turbo HD Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
2MP
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/25-1/50000s
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
