Description

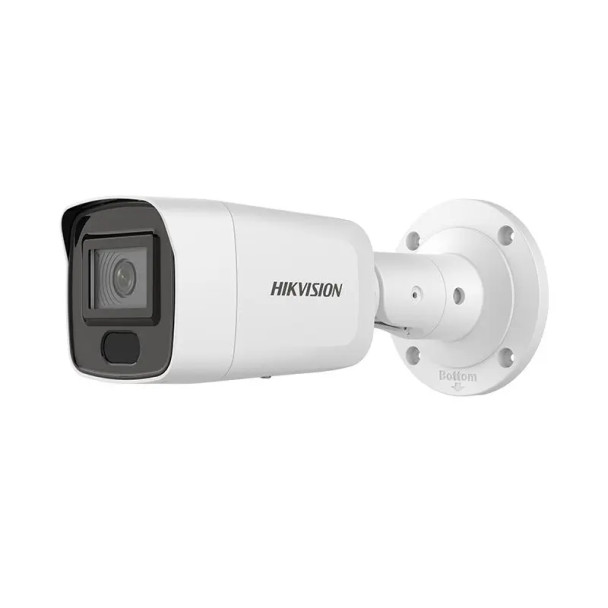

Hikvision PCI-B18F4S AcuSense 8MP IR Fixed Bullet IP Security Camera, 4mm Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Key Features:
- High quality imaging with 8 MP resolution
- Excellent low-light performance with Powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light with 120 dB true WDR technology
- False alarm reduction through human and vehicle target classification based on deep learning
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network conditions
- Water and dust resistant (IP67)
Downloads
User Manual
Hikvision-PCI-B18F4S-User-Manual-A1
Datasheet
Hikvision-PCI-B18F4S-Datasheet-A1
Firmware
Hikvision-PCI-B18F4S-Firmware-A1
Quick Start Guide
Hikvision-PCI-B18F4S-Quick-Start-Guide-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Motion Detection
Tampering
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
78.8 x 78.6 x 235.9 mm (3.1 x 3.1 x 9.3 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
102
|
|
Field of View (Horizontal):
|
87
|
|
Field of View (Vertical):
|
47
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Defog
Electronic Image Stabilization (EIS)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Mirror
Privacy Mask
Saturation
Sharpness
|
|
Languages:
|
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Portuguese (Brazil)
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
8.5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 3840 x 2160
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Performance Series
|
|
Protection Code:
|
IP67
|
|
RAM:
|
1GB
|
|
Region of Interest (ROI):
|
5
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
