Description

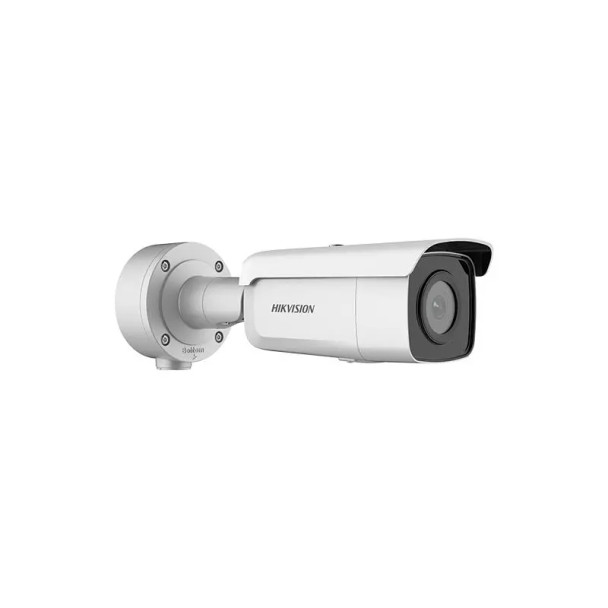

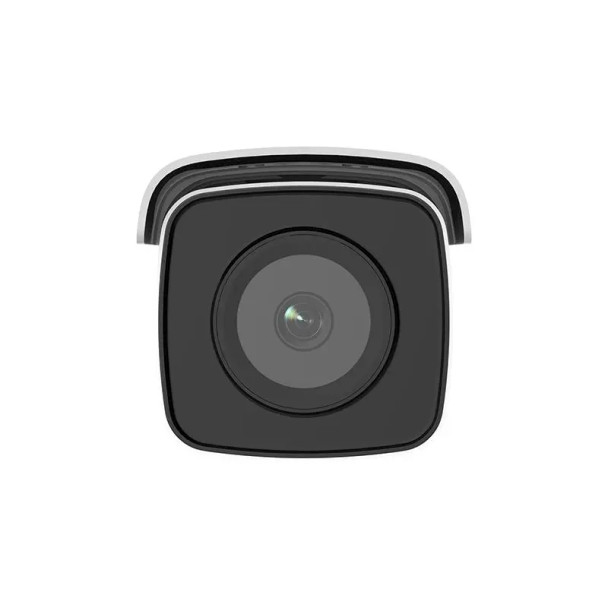

Hikvision PCI-LB15F4S AcuSense 5MP IR WDR Outdoor Bullet IP Security Camera with 4mm Fixed Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Key Features:
- Excellent low-light performance with powered-by-DarkFighter technology
- High quality imaging with 5 MP resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- IR Range Up to 60 m
- Water and dust resistant (IP66)
- False alarm reduction through human and vehicle target classification based on deep learning
- Provides real-time security via built-in two-way audio
Replacement of:
PCI-LB15F4SL
Downloads
User Manual
Hikvision-PCI-LB15F4S-User-Manual-A1
Datasheet
Hikvision-PCI-LB15F4S-Datasheet-A1
Firmware
Hikvision-PCI-LB15F4S-Firmware-A1
Quick Start Guide
Hikvision-PCI-LB15F4S-Quick-Start-Guide-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Motion Detection
Tampering
|
|
Aperture:
|
F1.4
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
MP3
PCM
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
REACH
RoHS
WEEE
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ONVIF Profile G
ONVIF Profile S
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
324.6 x 93.3 x 88.8 mm (12.8 x 3.7 x 3.5 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
102
|
|
Field of View (Horizontal):
|
78
|
|
Field of View (Vertical):
|
58
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Privacy Mask
Saturation
Sharpness
|
|
Languages:
|
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Portuguese (Brazil)
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
5MP
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
ADC12
|
|
Max Power Consumption:
|
13 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2592 x 1944
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.4 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
295
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Performance Series
|
|
Protection Code:
|
IP66
|
|
RAM:
|
512MB
|
|
Region of Interest (ROI):
|
5
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision DarkFighter
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Third Stream:
|
1280x720
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome 57.0 or above
Firefox 52.0 or above
Internet Explorer 10 or above
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
