Hikvision T7104Q1TA 4-Channel 1TB DVR 4x 2MP IR Turret Cameras with 1TB CCTV Analog Security Camera System
System includes:

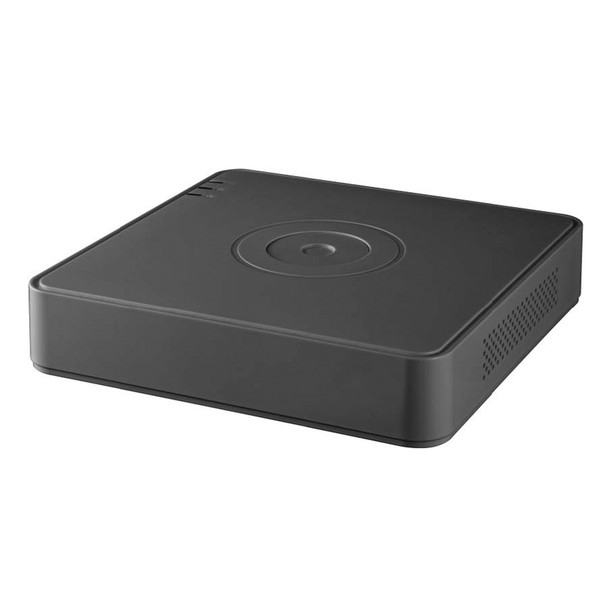

1x Hikvision DS-7104HQHI-F1/NB
Key features of Hikvision T7104Q1TA Camera System
- 1x 4-Channel DVR
- 1TB HDD Included
- H.264 ,H.264+& Dual-stream
- 1 SATA Interface Up to 6 TB capacity for each disk
- Long transmission distance over coax cable
- 4x 2MP Turret Camera
- 2.8mm Fixed Lens
- Weatherproof
- IR Range up to 66ft
- True Day/Night
Key features of Hikvision DS-7104HQHI-F1/NB
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, AHD and analog cameras with
- adaptive access
- Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N
- Support 1080P lite mode enabled to realize the real-time
- 1080P lite and 720P lite resolution
- Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 x 2160) resolution for HDMI output of DS-7116HQHI-F1/N
- Long transmission distance over coax cable
- Up to 4/8-ch synchronous playback at 1080p resolution
- Playback at up to 256X speed.
Key features of Hikvision DS-2CE56D0T-IR
- 2.0 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- Smart IR
- Up to 20m IR distance
- IP66 weatherproof
Features
Manufacturer:
Hikvision
Product Type:
Systems
Warranty:
3-year Manufacturer Warranty
Discontinued:
no
Security Camera Systems Features
Lens (Systems):
2.8mm
Lens Type (Systems)
:
The fixed length or vari-focal length refers to the ability to adjust the camera’s field of view. The smaller the lens size, the wider the field of view. Fixed lenses will be fixed for the life of the camera but vari-focal lenses can be adjusted to have the best field of view. Vari-focal lenses are two kinds, manual and auto. If you choose manual vari-focal lense, you will need to hold the camera adjust the focal length where as if you choose motorized vari-focal lens, you will be able to perform the same task from your computer. That is the main difference.
Fixed Lens
Pre-Installed Storage:
1 TB Storage
Recorder Channel Capacity:
4 Channel
Resolution (System):
2 Megapixel - 1080P
Security Camera Types:
Turret Security Cameras
Surveillance Technology:
CCTV (Analog) Security System
Number of Security Cameras:
4 camera system
Technical Specs
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | | | 1-ch |
| Video Compression: | | | H.264,H.264+ |
| Analog and HD-TVI video input: | | | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | | | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | ||
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
| Frame Rate: | | | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate: | | | 32 Kbps-6 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback: | | | 4-ch |
| Network management | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | ||
| Interface Type: | | | 1 SATA Interface |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | | | 2 USB 2.0 Interfaces |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | ≤ 8W(without hard disks) |
| Working Temperature: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | | | 10% ~ 90% |
| Chassis: | | | Mini 1U chassis |
| Dimensions: | | | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
| Weight: | | | ≤0.8 kg(4.4lb) |
| Camera | ||
|---|---|---|
| Image Sensor: | | | 2MP CMOS Image Sensor |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 1920(H)*1080(V) |
| Min. Illumination: | | | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 2.8mm, 3.6mm, 6mm optional |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Video Frame Rate: | | | 1080p@25fps/1080p@30fps |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| S/N Ratio: | | | More than 62 dB |
| General | ||
| Operating Conditions: | | | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC±15% |
| Power Consumption: | | | Max. 4W |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 20m |
| Dimension: | | | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) |
| Weight: | | | 280 g (0.57 lbs) |
