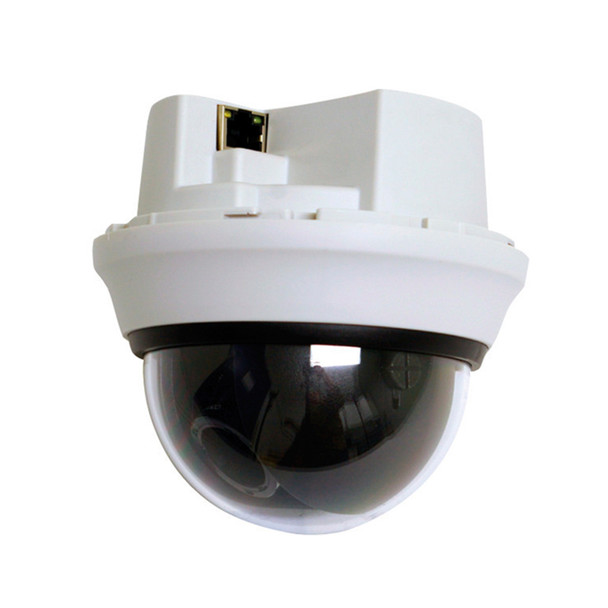

Honeywell H3D1F1 1MP Indoor Mini Dome IP Security Camera

Brand: Honeywell
Part Number: H3D1F1
Write a Review
Replacement: There is no direct replacement. Ask a representative.
  • Honeywell H3D1F1 1MP Indoor Mini Dome IP Security Camera
  • Honeywell H3D1F1 1MP Indoor Mini Dome IP Security Camera

Help me pick a security camera

Technical Support Technical Support
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 68.5°Field of View 19.1°Field of View
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 3.3~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/4" Sensor
  • Environmental : Indoor
  • Sensor Size : 1/4"
  • Aperture : F1.6

Customers Also Viewed


Honeywell H3D1F1 1MP Indoor Mini Dome IP Security Camera

Honeywell’s latest addition to the equIP Series of IP-based products, the H3D1F is a high-definition True Day/Night indoor fixed minidome network camera engineered to provide extremely crisp images at minimal bandwidth. The H3D1F provides 720p resolution at full frame rate. Progressive scan technology and 2D edge enhancement provide outstanding clarity and definition. Digital Noise Reduction (DNR) results in significant storage savings without sacrificing image quality in low light. The 1/4" progressive scan CMOS sensor offers the latest in digital video surveillance technology with accurate color rendition through a wide variety of lighting conditions. The H3D1F also supports the ONVIF Profile S specification for interoperability between network video products.

In addition to the low-light color performance, the camera will automatically switch to black and white. In this mode, lighting can be complemented with infrared for discreet/covert low-light surveillance with exceptional monochrome images.

A powerful and intuitive web client allows fine tuning of the camera and the auto iris levels. This can also be performed from most DVR/NVR setup utilities.

With built-in low current Power over Ethernet (IEEE 802.3af), power is supplied to the camera using standard network cabling, eliminating the need for a separate power supply and associated wiring. In situations where PoE support is not available, the unit can also be powered directly from 24 V AC.

Key Features:

  • Outstanding image quality, 720p (1280 x 720) resolution
  • 30 fps (25 fps PAL) progressive scan
  • True Day/Night, VFAI lens with removable IR cut filter
  • Camera tamper detection
  • Video motion detection
  • NTP time synchronization support
  • Wall/pendant mount kit available
  • ONVIF Profile S support
  • Dual digital video streams, independently configurable, H.264 and/or H.264/MJPEG
  • Remote firmware update
  • Supports both dynamic and static IP addresses
  • Date/time stamp embedded into video stream
  • Multiple browser support
  • Includes advanced IP locator software to make system setup easy
  • Embedded web server for remote setup of camera video and network parameters
  • Choice of 24 V AC or PoE IEEE 802.3af power inputs
  • Supports input and output alarm contacts
  • Supports bidirectional audio


Additional Information

Alarm Input:
1 Channel
Alarm Output:
1 Channel
Motion Detection
Audio Input:
1x Channel
Audio Output:
1x Channel
Camera Style:
Mini Dome
Compatible Integration (API):
ONVIF Profile S
ICR (True Day/Night)
Field of View (Horizontal):
68.5 19.1
Auto (DC-iris)
Lens Size:
Lens Type:
Varifocal (Manual Zoom) Lens
Max Power Consumption:
5 Watts
Operating Humidity:
0% to 85% RH (non-condensing)
Operating Temperature:
-10 °C to 50 °C (14 °F to 122 °F)
Power Supply:
24 VAC PoE (IEEE 802.3af)
S/N Ratio:
>50 dB
Sensor Size:
Sensor Type:
Storage Temperature:
-40 ºC to 70 ºC (-40 ºF to 158 ºF)
Network (IP)
