Description

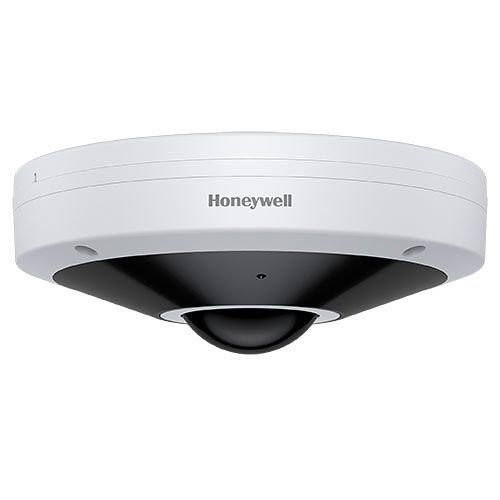

Honeywell HC30WF5R1 5MP Outdoor Fisheye IP Security Camera with 1.16mm Lens and Built-In IR
The Honeywell HC30WF5R1 is a 5MP outdoor fisheye IP security camera designed for panoramic surveillance in demanding environments. Featuring a 1.16mm fixed lens, it provides a full 360° horizontal and 180° vertical field of view, ensuring comprehensive area coverage with minimal blind spots. The camera delivers 5MP resolution (2560 x 1920) with Wide Dynamic Range (WDR) of 120 dB; ensuring clear images in both bright and low-light conditions. Built-in IR illumination provides night vision up to 20 meters, making it suitable for 24/7 surveillance. Equipped with dewarping modes for ceiling, wall, and floor mounting, the HC30WF5R1 supports smart video analytics including motion detection, intrusion detection, tampering detection, and audio detection via its built-in microphone. Its rugged design includes IP66 weatherproof protection and IK10 impact resistance, ensuring durability against harsh weather and physical impacts.
Key Features:
- 5MP resolution; delivers high-definition panoramic imaging for comprehensive surveillance.
- 1.16mm fixed lens; provides a full 360° horizontal and 180° vertical field of view.
- Built-in IR illumination; offers night vision up to 20 meters for effective low-light performance.
- Wide Dynamic Range (WDR) up to 120 dB; enhances image clarity in challenging lighting conditions.
- Smart video analytics; supports motion detection, intrusion detection, tampering detection, and audio detection.
- Built-in microphone; enables audio monitoring for enhanced security.
- IP66 weatherproof rating; provides durable protection against harsh weather conditions.
- IK10 impact-resistant housing; offers high durability against vandalism and physical damage.
- Dewarping modes; support multiple viewing angles for ceiling, wall, and floor mounting.
- MicroSD card support; allows for up to 256GB of local storage.
- PoE (IEEE 802.3af) and DC12V power options; offer flexible installation configurations.
- NDAA compliant; meets government security requirements for federal installations.
- ONVIF compliant; ensures seamless integration with leading video management systems.
Downloads
Additional Information
|
Aperture:
|
F2.25
|
|
Camera Style:
|
Fisheye
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
Ø159.95 mm × 59.7 mm (Ø6.3” × 2.35”)
|
|
Durability:
|
Dust Resistant
Vandal Resistant
Water Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
1.16mm
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK10
IP66
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
