Description

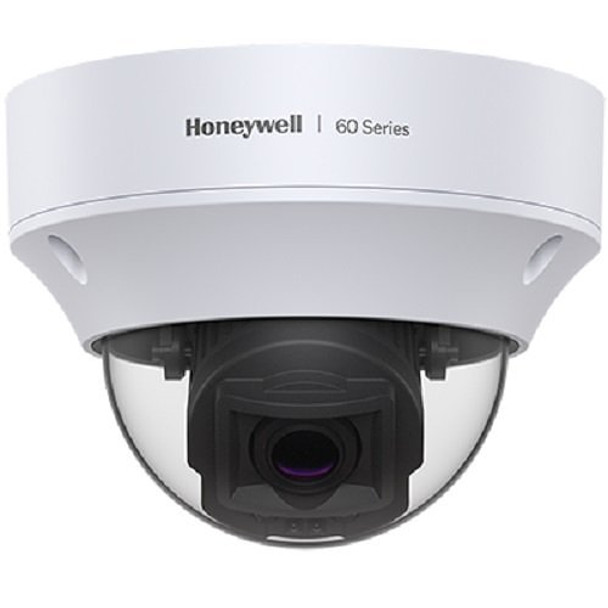

Honeywell HC60W45R4 5MP Outdoor Dome IP Security Camera with 7-22mm Lens and Built-In IR
The Honeywell HC60W45R4 is a 5MP outdoor dome IP security camera designed for high-performance surveillance in demanding environments. Featuring a 7-22mm motorized zoom lens, it offers flexible monitoring with a field of view ranging from 39° to 16°. The camera delivers 5MP resolution (2560 x 1920) with Wide Dynamic Range (WDR) of 120 dB; ensuring clear images in both bright and low-light conditions. Built-in IR illumination provides night vision up to 50 meters, supporting continuous 24/7 surveillance. The HC60W45R4 is equipped with smart video analytics, including intrusion detection, loitering detection, line crossing, unattended object detection, missing object detection, and face detection. Its rugged design includes IP66/IP67 weatherproof protection, NEMA 4X compliance, and IK10 impact resistance, ensuring durability against harsh weather and physical impacts.
Key Features:
- 5MP resolution; delivers high-definition imaging for detailed surveillance.
- 7-22mm motorized lens; offers flexible zoom with a narrow field of view for precise monitoring.
- Built-in IR illumination; provides night vision up to 50 meters for effective low-light surveillance.
- Wide Dynamic Range (WDR) up to 120 dB; enhances image clarity in challenging lighting conditions.
- Smart video analytics; supports intrusion detection, loitering detection, face detection, and object tracking.
- FIPS 140-2 certified encryption chipset; ensures robust data security.
- IP66/IP67 weatherproof ratings and NEMA 4X compliance; ensure durability against harsh weather conditions.
- IK10 impact-resistant housing; offers high durability against vandalism and physical damage.
- Defog feature; improves visibility in foggy conditions.
- Privacy masking; supports up to 5 configurable areas for sensitive information protection.
- Dual microSD card support; allows for up to 256GB of local storage.
- PoE (IEEE 802.3af) and DC12V power options; offer flexible installation configurations.
- ONVIF compliant; ensures seamless integration with leading video management systems.
Downloads
Additional Information
Aperture:
|
F1.6
F2.9
|
Camera Style:
|
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
Ø159.0 mm × 118.3 mm (Ø6.3” × 4.7”)
|
Durability:
|
Vandal Resistant
Weather Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
P-iris
|
Lens Size:
|
7~22mm
|
Power Supply:
|
PoE+ (IEEE802.3at)
12 VDC
24 VAC
|
Protection Code:
|
IP66
IP67
NEMA 4X
IK10
|
Resolution:
|
5MP (3K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
