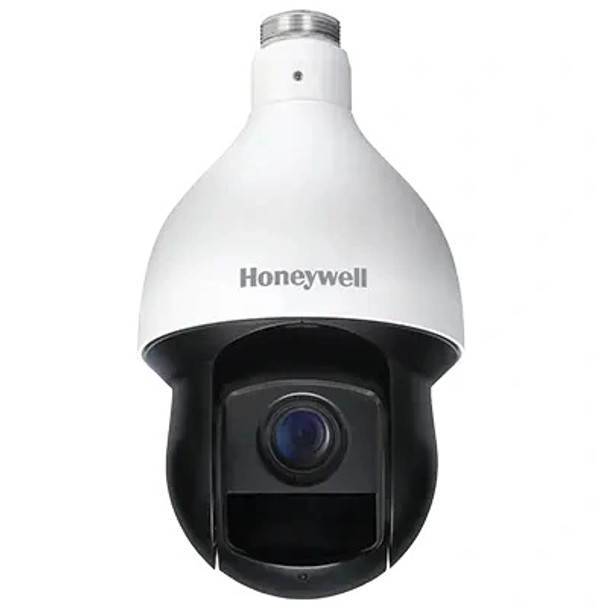

Honeywell HDZP304DI 4MP Night Vision Outdoor PTZ IP Security Camera with 30x Optical Zoom
Honeywell’s latest HDZ PTZ is part of the growing line of IP-based products. The high definition, True Day/Night WDR PTZ cameras provide extremely crisp video with up to 4 million effective pixels and 30x optical zoom for continuous surveillance in many security applications.
Key Features:
- 4.5–135 mm, F1.6-F4.4, 30x optical zoom lens
- 1/3" progressive scan image sensor
- 2688 x 1520 resolution
- Up to 50/60 fps primary stream. Up to 25/30 fps secondary streams
- Up to triple stream support
- Ultra-low light performance
- 328 ft. (100 m) IR distance, depending on scene reflectance
- True WDR: 120 dB
- Excellent low light performance with down to 0.05 lux (color) an 0 lux BW (with IRs on)
- Multiple, selectable compression formats (H.265/H.264/ MJPEG)
- Built-in Analytics, including Face detection
- Automatically restores to previous PTZ and lens position after power failure
- Choice of 24 VAC or PoE+ power inputs
- On board camera storage: up to 128 GB microSD card (not included)
- ONVIF profile S and Q compliant
- Water resistant IP66 ingress protection rating
Downloads
Datasheet
Honeywell-HDZP304DI-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Auto Tracking PTZ
Face Detection
|
|
Aperture:
|
F1.6
F4.4
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711a
AAC
G.711Mu
G.722
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
PTZ
|
|
Certifications:
|
UL Listed
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
Day (Color)
Night (B/W)
|
|
Digital Zoom:
|
16
|
|
Dimensions:
|
186 x 309 mm (7.32 x 12.17 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
2.2
60
|
|
Lens Size:
|
4.5~135mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
23 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2592 x 1520
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.05 Lux at F1.6
|
|
Mounting:
|
Pole Mount
Corner Mount
Wall Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 100 Mbps Port
|
|
Night Vision Range (ft):
|
328
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Optical Zoom:
|
30x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
24 VAC
|
|
Product Series:
|
Honeywell Performance Series
|
|
Protection Code:
|
IP66
|
|
Remote Users:
|
Up to 20
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>55 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/1-1/30000s
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
