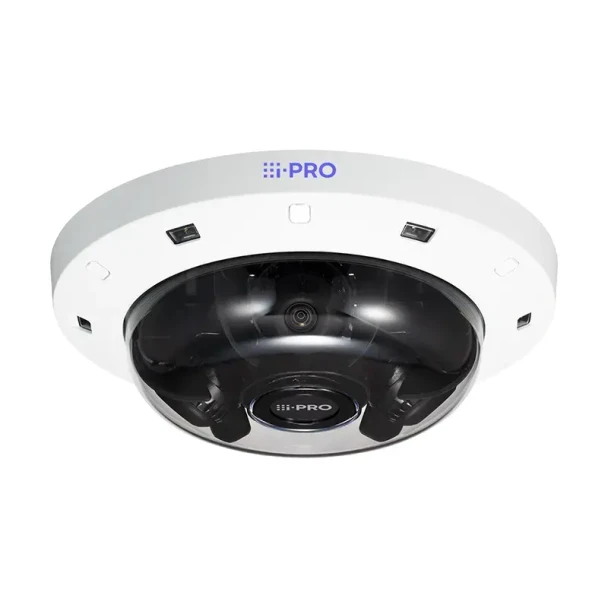

i-PRO Panasonic WV-S8543L 3x4MP 270° Outdoor Multi-Directional IP Security Camera with 2.9~7.3mm Lens and Built-In IR

i-PRO Panasonic WV-S8543L 3x4MP 270° Outdoor Multi-Directional IP Security Camera with 2.9~7.3mm Lens and Built-In IR

The i-PRO Panasonic WV-S8543L is a multi-directional outdoor network camera combining three 4MP sensors for a total of 12MP across up to 270 degrees of coverage. Each head uses an approximately 1/2.7 type CMOS image sensor delivering 2688 x 1520 at up to 30 fps, and the entire unit occupies a single IP address, cutting licensing and network infrastructure cost compared with deploying three separate cameras.

At approximately 3.5 inches deep, this is among the thinnest multi-sensor cameras available, allowing it to blend into both exterior facades and interior ceilings where a bulky housing would be intrusive. Each head carries a 2.9~7.3mm motorized zoom lens with 2.5x optical zoom, auto focus and remote zoom and focus adjustment, delivering a horizontal field of view from 43 degrees at telephoto to 100 degrees at wide. A wide-range tilt adjustment mechanism with continuous view assistance simplifies aiming the three heads during installation, and a panorama mode stitches a 170 degree horizontal view.

Powered by an Ambarella CV2 system on chip, the camera runs AI analytics including AI video motion detection, AI face detection, AI people detection, AI vehicle detection, AI occupancy detection and AI scene change detection, plus AI sound classification for gunshot, yell, vehicle horn and glass break. Smart Coding with Smart VIQS and P-picture control reduces bandwidth without sacrificing detail where it matters. Built-in 360 degree IR LEDs illuminate up to approximately 66 ft, and Super Dynamic wide dynamic range reaches 108 dB. The aluminum die cast housing is certified to IP66, IP67, NEMA 4X and IK10, resists wind up to approximately 89 mph, supports NEMA TS 2 for traffic installations, and operates from -40 °F to 140 °F. Security features include a FIPS 140-2 Level 3 compliant secure element (NXP EdgeLock SE050F), a pre-installed GlobalSign device certificate, signed firmware, HTTPS and IEEE 802.1X. The camera is NDAA compliant, supports ONVIF Profile G, M, S and T, records to microSDXC cards up to 512 GB, and is powered by PoE+ (IEEE 802.3at) over a Gigabit network interface.

Key Features:

• Three 4MP sensors totaling 12MP across up to 270° coverage; replaces three separate cameras while using one IP address and one license.
• Industry-thinnest multi-sensor profile at approximately 3.5 inches; mounts discreetly on facades and interior ceilings.
• 2.9~7.3mm motorized zoom lenses with 2.5x optical zoom and remote zoom and focus; allows each head to be framed without a return site visit.
• Wide-range tilt adjustment with continuous view assistance; speeds up aiming three heads during installation.
• Ambarella CV2 SoC running AI people, face and vehicle detection plus sound classification; filters events on camera so operators review fewer false alarms.
• Built-in 360° IR LED with up to 66 ft range; illuminates all three directions in complete darkness.
• Super Dynamic WDR up to 108 dB with color night vision at 0.21 lx; balances mixed lighting and preserves color detail after dark.
• Panorama mode with 170° horizontal view; presents a single stitched image for wide-area monitoring.
• IP66, IP67, NEMA 4X and IK10 rated aluminum housing with 89 mph wind resistance; survives heavy weather and vandalism attempts.
• NEMA TS 2 support and -40 °F to 140 °F operating range; suits roadside, traffic and extreme-climate installations.
• FIPS 140-2 Level 3 compliant secure element with signed firmware and NDAA compliance; qualifies for federal projects and resists credential attacks.
